03DPCG5C

Overview

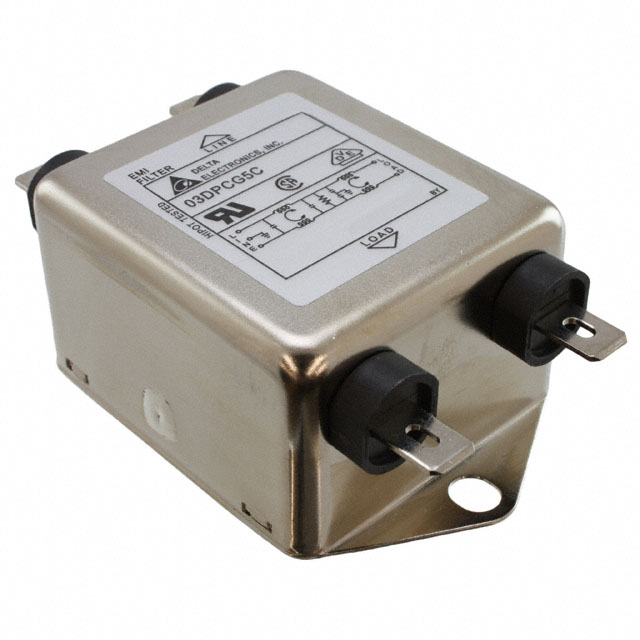

The Delta Electronics 03DPCG5C is a single-phase EMC/EMI power line filter designed for chassis mounting. It operates at rated voltages of 115V and 250VAC with a current rating of 3A at 50/60Hz. The component features a two-stage filtering configuration and utilizes quick-connect terminals for circuit attachment. Certified by CSA, UR, and VDE, it complies with RoHS3 standards and carries an EAR99 classification.

Feature Summary

• Two-stage filtering architecture for enhanced noise suppression
• Chassis mount installation style for secure integration
• Quick-connect terminal interface for simplified wiring

Applications

• General purpose switching transient filtering
• EMC/EMI line noise reduction in AC power circuits
• Industrial equipment power conditioning

Procurement Notes

Verify the specific datasheet version before procurement, as product discontinuation notifications indicate potential end-of-life status. Confirm that the quick-connect terminal type matches the mating connector requirements. Ensure the 3A current rating and 115/250VAC voltage specifications align with the target system's electrical parameters to avoid performance degradation or safety hazards.

Selection Notes

Select this model when a compact, single-phase EMI filter with a 3A capacity is required for chassis-mounted applications. The two-stage design offers superior attenuation compared to single-stage alternatives. Ensure the installation environment supports the specified operating frequency range of 50/60Hz and that the quick-connect terminals are compatible with the available harnessing infrastructure.

Part Context

This component belongs to the DP series of power line filters manufactured by Delta Electronics. It is categorized under power condition sub-types within the broader power line filter module family. The part is distinct from higher current variants like the 30DPGS5C and lower current models such as the 06DPCG5C, which share similar form factors but differ in amperage ratings.

Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided documentation. Due to the noted end-of-life notification, alternative sourcing should be evaluated carefully against the original electrical specifications and certification requirements.
