Product Detailed Parameters
- Description：LINE FILTER 115V/250VAC 3A CHASS
- Series：DP
- Mfr：Delta Electronics
- Package：Box
- Filter Type：Single Phase
- Configuration：Two Stage
- Voltage - Rated DC：-
- Voltage - Rated AC：115V, 250V
- Current：3:00 AM
- Frequency - Operating：50/60Hz
- Applications：General Purpose
- Approval Agency：CSA, UR, VDE
- Operating Temperature：-
- Mounting Type：Chassis Mount
- Termination Style：Quick Connect
- Inductance：-
- Voltage - Rated AC (Phase to Phase)：-
Download product information
Overview

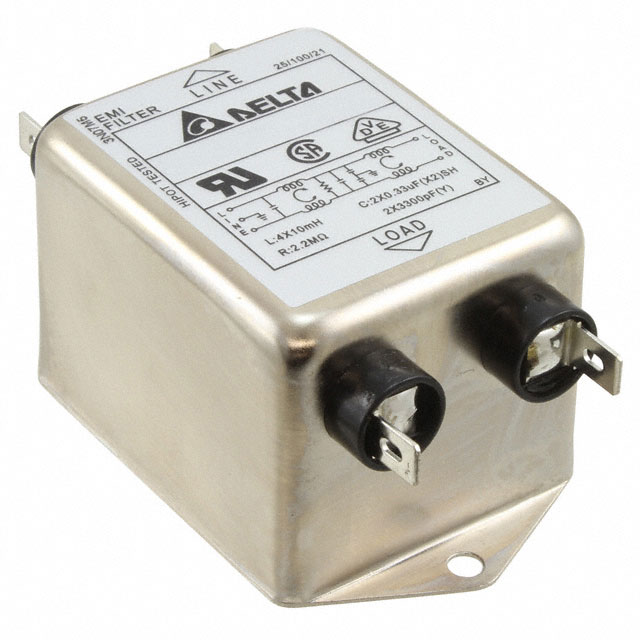

The Delta Electronics 03DPCG5S is a single-phase, two-stage power line filter designed for chassis mounting. It features wire-to-wire termination and supports rated voltages of 115 VAC and 250 VAC with a current rating of 3 A. Operating at 50 Hz or 60 Hz, this component provides switching transient filtering and general-purpose EMI suppression. The unit is classified as an end-of-life product, indicating that the manufacturer will discontinue production.
Feature Summary
- Two-stage high-performance filtering architecture
- Chassis mount installation style
- Wire-to-wire termination configuration
Applications
- Switching transient filtering
- General-purpose electromagnetic interference suppression
- Power line conditioning for electronic equipment
Procurement Notes
This component is officially designated as End-of-Life by Delta Electronics. Production discontinuation is confirmed via official notifications. Verify availability through authorized distributors only. Do not assume ongoing manufacturing support. Check specific lot dates and expiration notices before procurement to ensure compliance with project timelines.
Selection Notes
Select this model only if wire-to-wire termination suits the design. Confirm compatibility with 115/250 VAC systems and 3 A load requirements. Consider alternative Delta DP series filters if chassis-mount constraints or termination styles differ. Evaluate replacement options due to imminent obsolescence status.
Part Context
The 03DPCG5S belongs to the Delta Electronics DP series of power line filters. This series includes various configurations for single-phase applications. The component serves as a specialized solution for noise reduction in AC power lines, distinct from three-phase or higher-current variants within the same family.
Replacement Considerations
Consult official Delta Electronics documentation for verified substitute part numbers. No direct public substitutes are listed in available sources. Contact manufacturer for recommended obsolescence replacements.
