Product Detailed Parameters
- Description：LINE FILTER 115V/250VAC 3A CHASS
- Series：DP
- Mfr：Delta Electronics
- Package：Box
- Filter Type：Single Phase
- Configuration：Two Stage
- Voltage - Rated DC：-
- Voltage - Rated AC：115V, 250V
- Current：3:00 AM
- Frequency - Operating：50/60Hz
- Applications：General Purpose
- Approval Agency：CSA, UR, VDE
- Operating Temperature：-
- Mounting Type：Chassis Mount
- Termination Style：Wire Leads
- Inductance：-
- Voltage - Rated AC (Phase to Phase)：-
Download product information
Overview

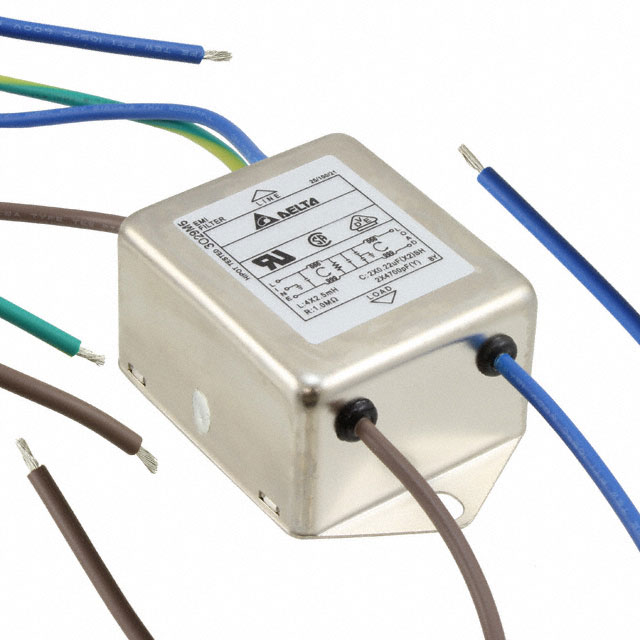

The Delta Electronics 03DPCW5C is a single-phase, two-stage power line filter designed for chassis mounting. It supports AC voltage ratings of 115 VAC and 250 VAC with a rated current of 3 A. The component utilizes wire-to-wire termination and exhibits a leakage current of 2 mA. It is certified by CSA, UR, and VDE agencies.
Feature Summary
- Two-stage filtering configuration for effective switching transient suppression
- Chassis mount design with wire termination for direct integration
- Low leakage current specification suitable for sensitive applications
Applications
- General purpose electromagnetic interference suppression
- Single-phase AC power line conditioning
- Industrial equipment input protection
Procurement Notes
Verify end-of-life status before procurement as the manufacturer has indicated discontinuation. Confirm availability through authorized distributors only. Ensure compatibility with existing chassis mounting hardware and wire termination requirements. Review latest datasheets for any final production changes or certification updates prior to finalizing orders.
Selection Notes
Select this component for single-phase applications requiring 3 A capacity and low leakage current. The chassis mount style requires appropriate panel cutouts. Verify that wire termination suits the incoming cable gauge. Consider the two-stage architecture for enhanced noise attenuation compared to single-stage alternatives in general-purpose environments.
Part Context
This part belongs to the DP series of power line filters from Delta Electronics. It is categorized under EMC/EMI components for industrial and general-purpose use. The product is distinct from higher-current models like the 30A variants within the same family.
Replacement Considerations
Publicly confirmed substitute part numbers are not available in the provided documentation. Due to the end-of-life status, alternative sourcing should focus on verifying functional equivalence with other single-phase, 3 A, chassis-mount filters if direct replacement is required.
