03DRCG5

Overview

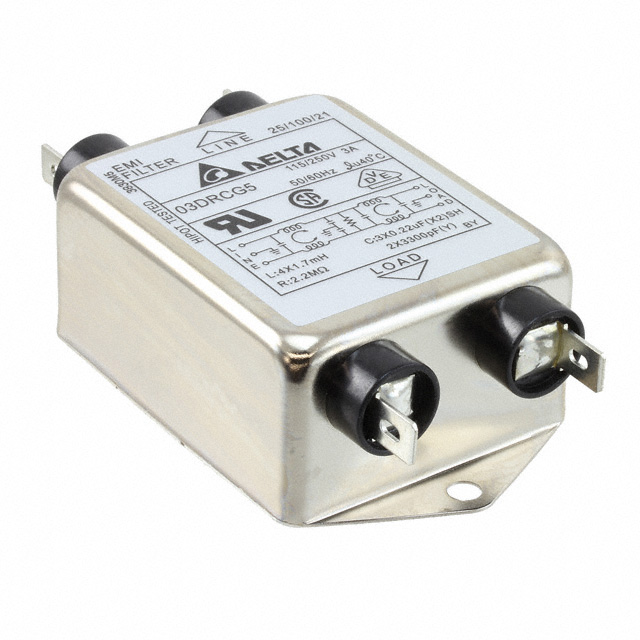

The Delta Electronics 03DRCG5 is a single-phase power line filter designed for chassis mounting. It operates at voltage ratings of 115 VAC and 250 VAC with a current rating of 3 A. The component functions as a two-stage EMC/EMI filter suitable for 50/60 Hz applications. It utilizes lug-lug termination styles for circuit connection.

Feature Summary

• Two-stage filtering architecture for enhanced noise suppression
• Chassis mount installation style for secure integration
• Lug-lug terminal configuration for direct wiring

Applications

• General purpose electronic equipment noise reduction
• Industrial control system power conditioning
• Medical device electromagnetic compatibility compliance

Procurement Notes

Verify the specific datasheet version before procurement, as the manufacturer has issued an End of Life notification dated June 1, 2026. Confirm that the lug-lug termination style matches the existing panel design. Check for RoHS compliance status in the latest documentation to ensure regulatory adherence for the target market.

Selection Notes

Select this component when a two-stage performance filter is required for 3 A circuits. Ensure the chassis mounting footprint accommodates the physical dimensions. Verify that the lug-lug terminals are compatible with the available busbar or wire gauge specifications in the system design.

Part Context

This part belongs to the DP series of high-performance filters from Delta Electronics. It is categorized under power condition sub-types within the broader power line filter product family. The component is distinct from IEC connector filters and snap-in variants offered by the same manufacturer.

Replacement Considerations

The manufacturer has announced discontinuation with a final shipment date around mid-2026. Designers should evaluate alternative two-stage chassis-mount filters with identical 3 A ratings and lug-lug terminations. Cross-reference mechanical dimensions to ensure fitment in existing enclosures.
