03DRCW5

Overview

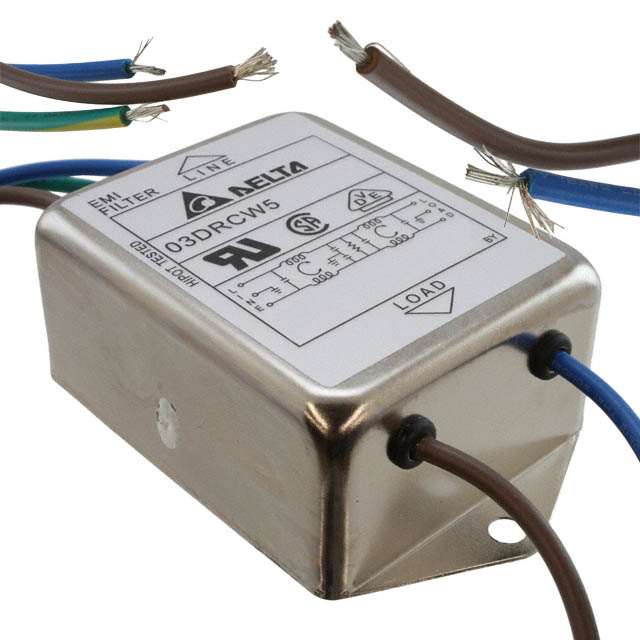

The Delta Electronics 03DRCW5 is a single-phase, two-stage switching transient filter designed for chassis mounting with wire-to-wire termination. It operates at 115 VAC and 250 VAC with a current rating of 3 A at 50 Hz or 60 Hz. The unit features a low leakage current of 2 mA and complies with UL, CSA, and VDE safety standards.

Feature Summary

• Two-stage filtering architecture for effective noise suppression
• Chassis mount design with wire lead termination
• Low leakage current specification for safety compliance

Applications

• General purpose power line filtering
• EMC/EMI noise reduction in AC power inputs
• Industrial equipment power conditioning

Procurement Notes

Verify the exact part number against official Delta Electronics documentation to ensure compatibility. Confirm that the component meets specific regional safety certifications required for your application. Check for end-of-life status as availability may be limited.

Selection Notes

Select this model for applications requiring a compact, single-phase EMI filter with wire leads. Ensure the operating voltage does not exceed 250 VAC and the load current remains within the 3 A limit. Verify chassis mounting space and terminal accessibility before integration.

Part Context

This component belongs to the DP series of power line filters manufactured by Delta Electronics. It is categorized under general-purpose EMC/EMI solutions designed for AC power input protection in electronic systems.

Replacement Considerations

The 03DPCW5S is an equivalent substitute part number from the same manufacturer offering similar specifications.
