03DSCG5

Overview

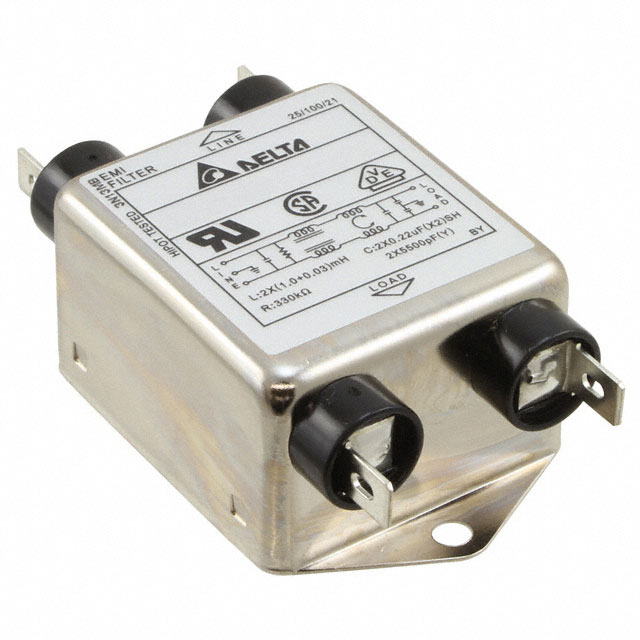

The Delta Electronics 03DSCG5 is a single-phase power line filter designed for electromagnetic compatibility (EMC) and interference suppression. It features a two-stage configuration to effectively attenuate noise across the power spectrum. The component is rated for operation at voltages of 115 VAC and 250 VAC, with a continuous current rating of 3 A. It supports operating frequencies of 50 Hz and 60 Hz. The unit utilizes chassis mount installation with lug-lug termination style for secure electrical connections.

Feature Summary

• Two-stage filtering architecture for enhanced noise attenuation
• Compliance with UL, CSA, and VDE safety standards
• Chassis mount design with lug-lug termination

Applications

• Industrial equipment requiring EMI/RFI suppression
• Medical devices needing certified power line filtering
• Commercial machinery adhering to EMC regulations

Procurement Notes

Verify compliance requirements against UL, CSA, and VDE certifications before integration. Confirm voltage and current ratings match system specifications. Check end-of-life status as discontinuation notifications may apply. Ensure chassis mounting dimensions accommodate physical constraints. Validate termination style compatibility with existing wiring infrastructure.

Selection Notes

Select this model for applications requiring certified single-phase filtering at 3 A. Consider the two-stage design for superior noise reduction compared to single-stage alternatives. Evaluate chassis mount constraints for enclosure integration. Verify frequency compatibility with 50 Hz or 60 Hz systems. Assess termination needs for lug-lug connections.

Part Context

This component belongs to the DP series of power line filters from Delta Electronics. It falls under the Power Condition sub-category within passive components. The product is classified as a multi-purpose filter suitable for various industrial and commercial environments requiring reliable electromagnetic interference mitigation.

Replacement Considerations

The 03DPCG5CM is documented as an equivalent part number. Verify functional equivalence regarding voltage, current, and mounting specifications before substitution. Confirm that any replacement maintains required safety certifications.
