Product Detailed Parameters
- Description：LINE FILTER 250VAC 3A CHASS MNT
- Series：ER, Curtis Industries/PREO
- Mfr：Curtis Industries
- Package：-
- Filter Type：Single Phase
- Configuration：Two Stage
- Voltage - Rated DC：-
- Voltage - Rated AC：250V
- Current：3:00 AM
- Frequency - Operating：50/60Hz
- Applications：General Purpose
- Approval Agency：CSA, UR, VDE
- Operating Temperature：-
- Mounting Type：Chassis Mount
- Termination Style：Wire Leads
- Inductance：-
- Voltage - Rated AC (Phase to Phase)：-
Download product information
Overview

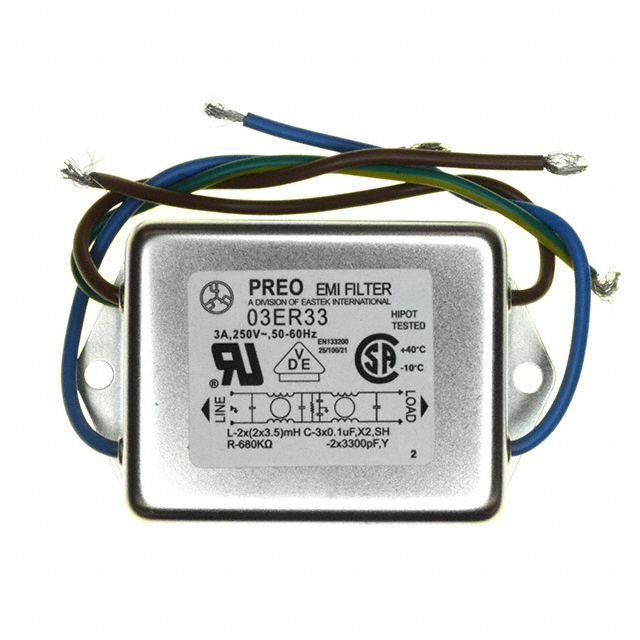

The Curtis Industries 03ER33 is a single-phase EMC/EMI line filter module designed for chassis or panel mounting. It features a two-stage configuration to provide effective noise suppression in power line applications. The unit operates at 50/60Hz and supports a continuous current of 3A with a voltage rating of 250VAC. Termination is achieved via wire leads, facilitating integration into various electrical systems requiring general-purpose interference filtering.
Feature Summary
- Two-stage electromagnetic interference suppression architecture
- Single-phase power line filtering capability
- Wire lead termination style for direct connection
Applications
- General purpose EMI/EMC noise reduction
- Chassis mounted power supply filtering
- Panel integrated signal integrity protection
Procurement Notes
Verify the component status as obsolete before procurement planning. Confirm that RoHS compliance information is unavailable for this specific part number. Ensure that the wire lead termination style matches your assembly requirements. Validate that the 3A current rating and 250VAC voltage specifications meet your system design constraints prior to ordering.
Selection Notes
Select this component when a two-stage filtering solution is required for single-phase AC lines. The 3A rating suits low-power electronic equipment. Consider the wire lead termination if through-hole or direct wiring is preferred over PCB mount options. Verify that the chassis mounting method aligns with your enclosure design. Ensure the operating frequency range covers your specific 50/60Hz application needs.
Part Context
This component belongs to the ER Series of power line filter modules from Curtis Industries. It is categorized under passive components within the filters product line. The series focuses on providing essential electromagnetic compatibility solutions for industrial and commercial electronic assemblies requiring reliable noise attenuation.
Replacement Considerations
No public confirmed substitute part numbers are available for this obsolete component. Evaluate alternative two-stage line filters from other manufacturers if sourcing is critical. Ensure any replacement meets the 3A current and 250VAC voltage ratings.
