04TDPS6

Overview

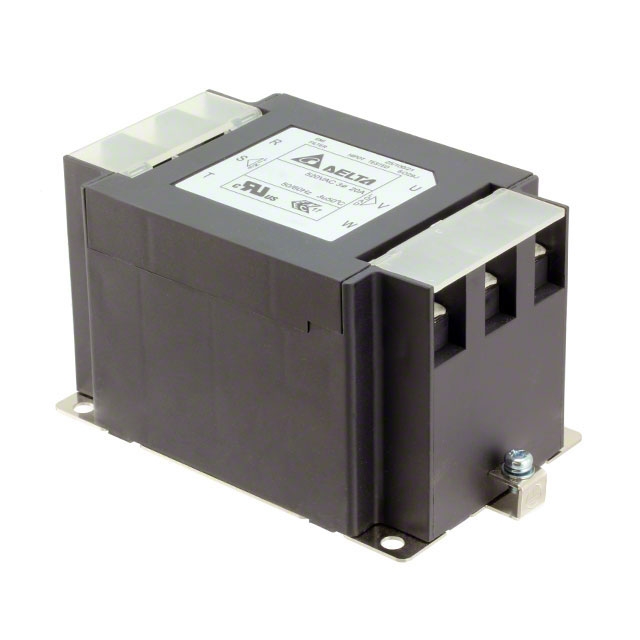

The Delta Electronics 04TDPS6 is a power line filter module designed for chassis mounting. It features a 100mm form factor and supports an input current rating of 4A. The unit utilizes terminal block connections for integration into electrical systems. This component is part of the Delta power line filter series, engineered to manage electromagnetic interference in industrial applications.

Feature Summary

• Chassis mount construction for secure installation
• Terminal block interface for wiring connectivity
• Designed for power line filtering applications

Applications

• Industrial equipment power supply conditioning
• Electrical cabinet EMI suppression
• Power distribution system noise reduction

Procurement Notes

Verify the specific datasheet version for the 04TDPS6 model to confirm exact terminal specifications and mounting hole dimensions. Ensure compatibility with the intended chassis material and available mounting space. Cross-reference the 4A current rating with actual load requirements to prevent thermal issues during operation.

Selection Notes

Select this module when a compact, chassis-mounted solution is required for power line filtering. The 100mm size offers a balance between footprint and performance. Consider the terminal block style if screw-terminal wiring is preferred over PCB mounting. Evaluate the 4A rating against peak and continuous load currents.

Part Context

This component belongs to Delta Electronics' range of power line filter modules. These filters are typically used to attenuate conducted electromagnetic interference on AC or DC power lines. The 04TDPS6 represents a specific variant within this family, distinguished by its chassis mount design and terminal block configuration.
