05DBAG5

Overview

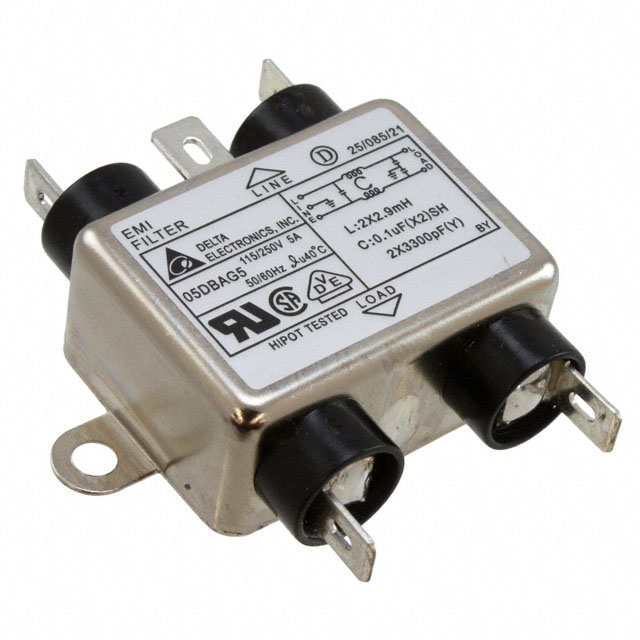

The Delta Electronics 05DBAG5 is a single-stage, general-purpose EMI/EMC power line filter designed for chassis mounting. It supports single-phase AC input with voltage ratings of 115 VAC and 250 VAC at operating frequencies of 50 Hz and 60 Hz. The component has a current rating of 5 A and utilizes lug-lug terminal connections for secure installation.

Feature Summary

• Provides effective electromagnetic interference suppression through single-stage filtering design
• Supports dual voltage ratings for versatile application in 115 VAC and 250 VAC systems
• Features robust chassis mount construction with lug-lug terminals for reliable integration

Applications

• Single-phase power supply units requiring EMI suppression
• Industrial equipment chassis integration
• General-purpose electronic devices subject to EMC regulations

Procurement Notes

Verify the specific datasheet version and RoHS compliance status directly with Delta Electronics or authorized distributors before procurement. Confirm that the lug-lug terminal configuration matches your chassis mounting requirements. Ensure the 5 A current rating and 250 VAC voltage rating align with your system's electrical specifications to prevent operational failure.

Selection Notes

Select this component when a single-stage filter solution is sufficient for your EMI reduction needs. It is appropriate for applications where space constraints allow for chassis mounting rather than PCB integration. Consider the 5 A current capacity and dual voltage support as primary selection criteria for compatibility with standard single-phase power inputs.

Part Context

This part belongs to Delta Electronics' general-purpose power line filter series. It is engineered for standalone chassis installation rather than surface-mount or through-hole PCB assembly. The design focuses on providing essential noise attenuation for single-phase AC lines in industrial and commercial environments.

Replacement Considerations

Consult official Delta documentation for verified substitute part numbers within the same product family. Do not assume cross-compatibility with filters from other manufacturers without verifying electrical parameters and physical dimensions.
