05DBAW5

Overview

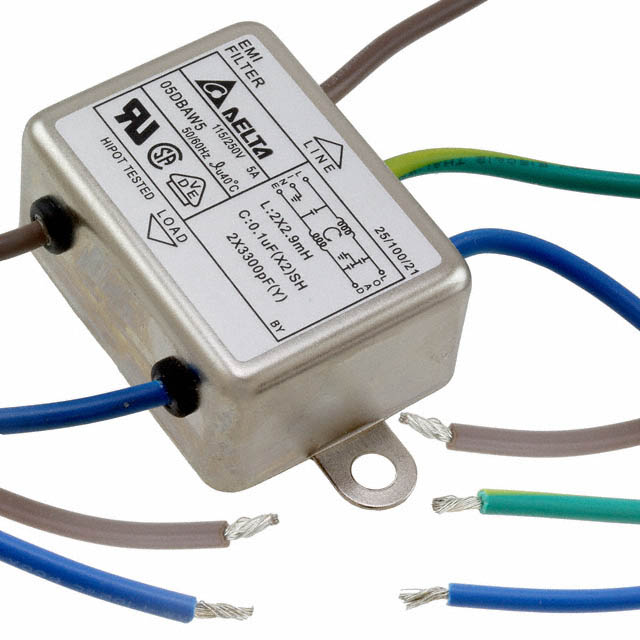

The Delta Electronics 05DBAW5 is a single-stage, general-purpose power line EMI filter designed for AC mains applications. It operates at 115/250VAC with a current rating of 5A and supports 50/60Hz frequencies. The unit features chassis mounting and wire-to-wire termination. Certified by CSA, UR, and VDE, it functions within a temperature range of -25°C to 100°C.

Feature Summary

• Single-stage EMI suppression architecture
• General-purpose noise filtering capability
• Chassis mount installation style

Applications

• Power line filtering
• EMI/RFI suppression
• General purpose electronic equipment

Procurement Notes

Verify the specific voltage and current ratings against your system requirements before ordering. Confirm that the chassis mounting style and wire termination type are compatible with your enclosure design. Check certification marks (CSA, UR, VDE) to ensure compliance with regional safety standards. Note that availability may vary as this component has been subject to lifecycle changes.

Selection Notes

Select this model when a single-stage filter is sufficient for your noise reduction needs. Ensure the 5A current rating exceeds your maximum load current. Verify that the physical dimensions allow for proper chassis mounting. Consider the operating temperature range if the device will be used in high-heat environments.

Part Context

This component belongs to Delta Electronics' power line filter series. It is distinct from multi-stage filters like the 10DPCW5, which offers higher current capacity. The 05DBAW5 is specifically engineered for lower current applications requiring basic EMI attenuation.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Consult Delta Electronics directly for potential obsolescence management or equivalent product recommendations.
