Product Detailed Parameters
- Description：LINE FILTER 115V/250VAC 5A CHASS
- Series：DK
- Mfr：Delta Electronics
- Package：Bulk
- Filter Type：Single Phase
- Configuration：Single Stage
- Voltage - Rated DC：-
- Voltage - Rated AC：115V, 250V
- Current：5:00 AM
- Frequency - Operating：50/60Hz
- Applications：General Purpose
- Approval Agency：CSA, UR, VDE
- Operating Temperature：-25°C ~ 100°C
- Mounting Type：Chassis Mount
- Termination Style：Threaded Post (8-32)
- Inductance：2.7mH
- Voltage - Rated AC (Phase to Phase)：-
Download product information
Overview

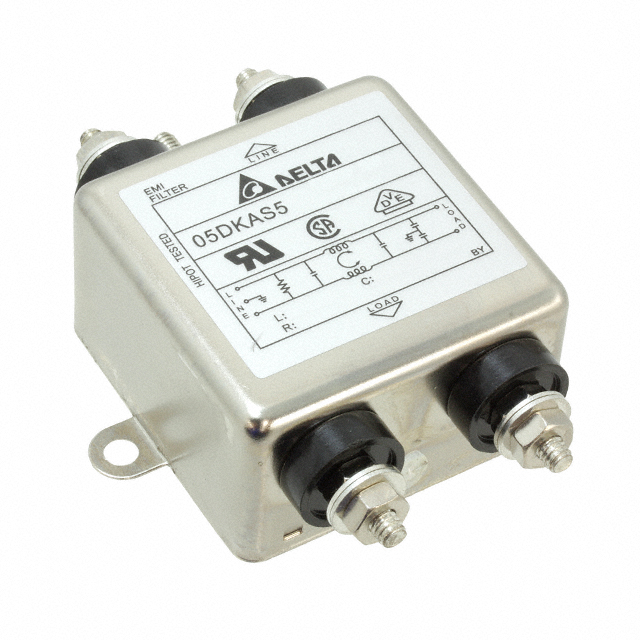

The Delta Electronics 05DKAS5 is a single-stage, single-phase power line filter module designed for chassis mounting. It operates within an ambient temperature range of -25°C to 100°C and features an inductance of 2.7mH. The unit is rated for voltage regimes of 115 VAC and 250 VAC with a current capacity of 5 A. Packaged in bulk, this component serves as an electromagnetic interference suppression device for AC power lines.
Feature Summary
- Single-stage filtering configuration for effective noise attenuation
- Chassis mount design for secure mechanical installation
- Wide operating temperature range supporting diverse environmental conditions
Applications
- Industrial equipment power input stages
- Commercial machinery EMI suppression
- Power supply line filtering
Procurement Notes
Verify the specific voltage rating (115 VAC or 250 VAC) required for your application against the datasheet specifications. Confirm that the 5 A current rating meets the load requirements. Ensure the chassis mounting method aligns with your enclosure design. Check for RoHS compliance status if mandated by your project standards.
Selection Notes
Select this module when a single-phase, single-stage solution is sufficient for noise reduction needs. Consider the 2.7mH inductance value for compatibility with your circuit impedance. The wide temperature range makes it suitable for environments without active cooling. Verify physical dimensions for chassis fit before integration.
Part Context
This component belongs to the DK series of power line filter modules from Delta Electronics. These filters are engineered to suppress conducted electromagnetic interference on AC power lines. The series offers various ratings to accommodate different industrial and commercial power distribution requirements.
Replacement Considerations
No public confirmed substitute part numbers are available in the provided documentation. Consult manufacturer catalogs for equivalent DK series variants or comparable single-stage filters from other suppliers.
FAQ
What is the inductance value of the 05DKAS5?
The inductance is 2.7mH.
Is this filter suitable for high-temperature environments?
Yes, it supports an operating temperature range up to 100°C.
