05DKAW5

Overview

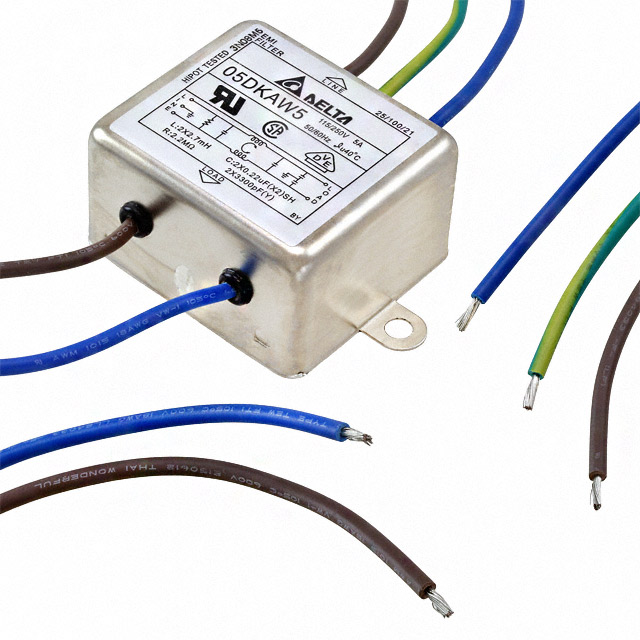

The Delta Electronics 05DKAW5 is a single-phase EMI/EMI power line filter designed for chassis mounting. It operates at rated voltages of 115 VAC and 250 VAC with a current rating of 5 A. The unit supports frequencies of 50 Hz and 60 Hz. It features wire-to-wire termination and includes certifications from UL, CSA, and VDE.

Feature Summary

• Single-stage filtering configuration for electromagnetic interference suppression
• Chassis mount installation style with wire-to-wire termination
• Certified compliance with UL, CSA, and VDE safety standards

Applications

• General purpose electronic equipment noise reduction
• Industrial control system power line conditioning
• Commercial machinery EMC compliance enhancement

Procurement Notes

Verify the specific datasheet version to confirm current production status and certification validity. Check for any recent product change notifications regarding component updates or regulatory changes. Ensure the ordering suffix matches the required termination and voltage specifications for your application design.

Selection Notes

Select this model when a single-stage filter is sufficient for the required attenuation levels. Confirm that the 5 A current rating meets the maximum load requirements. Verify that the chassis mounting style and wire termination method are compatible with the enclosure design and wiring harness.

Part Context

This component belongs to the Delta Electronics DK series of power line filters. These filters are engineered for general-purpose applications requiring basic EMI suppression. The series provides standardized solutions for integrating noise filtering into AC power inputs for various electronic devices.

Replacement Considerations

Consult official Delta Electronics documentation for confirmed substitute part numbers. Do not assume cross-compatibility with other series without verifying electrical parameters and physical dimensions.
