05DKDG3S

Overview

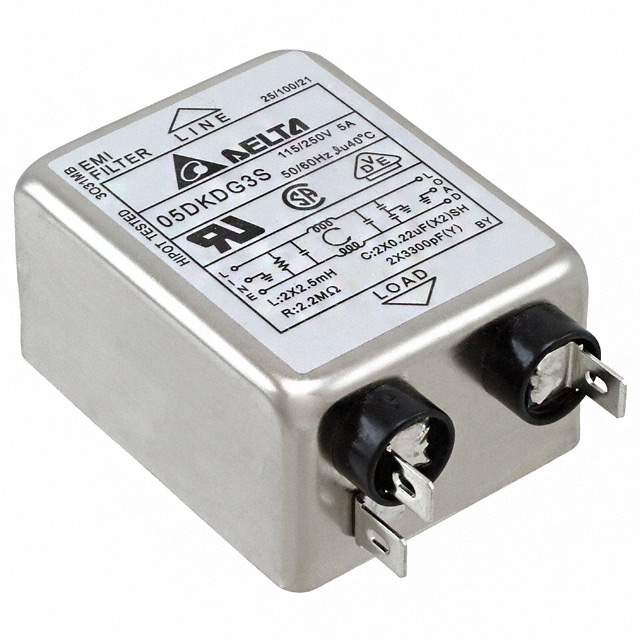

The Delta Electronics 05DKDG3S is a general purpose AC power entry module designed for chassis mounting. It features an integrated EMI filter rated for 115/250VAC input and supports a maximum current of 5A. The unit utilizes N/A-lug terminals for electrical connections, ensuring secure integration into equipment frames. This component provides essential noise suppression for sensitive electronic systems while maintaining compliance with standard safety regulations.

Feature Summary

• Integrated electromagnetic interference (EMI) filtering for clean power delivery
• Chassis-mount design for stable mechanical installation
• N/A-lug terminal configuration for reliable electrical connectivity

Applications

• Industrial control panels requiring EMI suppression
• Medical equipment power inputs
• General-purpose electronic enclosures

Procurement Notes

Verify the specific terminal type and voltage ratings against your system requirements before procurement. Confirm RoHS compliance status through official manufacturer documentation or authorized distributors. Ensure that the chassis mounting dimensions align with your enclosure design to prevent fitment issues during assembly.

Selection Notes

Select this module when a compact, chassis-mounted solution with integrated filtering is required for 5A applications. Consider the N/A-lug interface compatibility with existing wiring harnesses. Evaluate the physical footprint against available space in the target equipment chassis to ensure proper clearance and airflow management.

Part Context

This component belongs to Delta Electronics' AC Power Entry Module series, which focuses on providing reliable power connection and noise filtration for various electronic devices. The DKDG series is engineered for durability and consistent performance in demanding environments, offering a balance of electrical safety and electromagnetic compatibility for end-users.

Replacement Considerations

Consult official Delta Electronics documentation for verified substitute part numbers. Do not assume cross-compatibility with other manufacturers without verifying pinout, voltage, and current specifications.
