Product Detailed Parameters
- Description：LINE FILTER 115V/250VAC 5A CHASS
- Series：DR
- Mfr：Delta Electronics
- Package：Bulk
- Filter Type：Single Phase
- Configuration：Two Stage
- Voltage - Rated DC：-
- Voltage - Rated AC：115V, 250V
- Current：5:00 AM
- Frequency - Operating：50/60Hz
- Applications：General Purpose
- Approval Agency：CSA, UR, VDE
- Operating Temperature：-25°C ~ 100°C
- Mounting Type：Chassis Mount
- Termination Style：Quick Connect
- Inductance：1.6mH
- Voltage - Rated AC (Phase to Phase)：-
Download product information
Overview

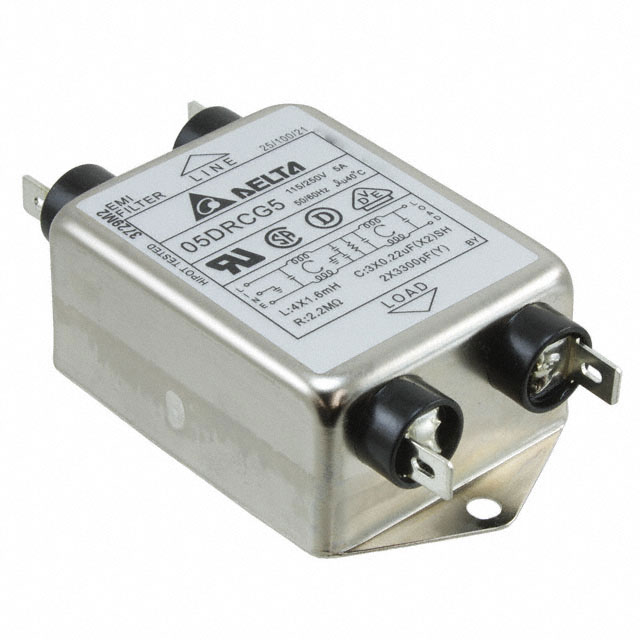

The Delta Electronics 05DRCG5 is a single-phase EMC/EMI line filter module designed for chassis mounting. It operates at 50/60Hz with a rated current of 5 A and voltage ratings of 115VAC or 250VAC. The component features a two-stage configuration with an inductance of 1.6mH. It utilizes quick-connect terminals for installation and holds CSA, UR, and VDE certifications.
Feature Summary
- Single-phase EMI/EMC filtering capability
- Two-stage filter architecture
- Chassis mount installation type
- Quick-connect terminal style
Applications
- General purpose electronic equipment noise suppression
- Industrial control systems
- Power supply input filtering
Procurement Notes
Verify the specific part number against official Delta Electronics documentation to ensure compatibility with system requirements. Confirm that the chassis mount style and quick-connect terminals match the design specifications. Check certification status (CSA, UR, VDE) if required for end-product compliance. Review the datasheet for leakage current and operating temperature range (-25°C to 100°C) to validate environmental suitability.
Selection Notes
Select this component when a single-phase, two-stage EMI filter is required for 5 A applications. Ensure the chassis mount form factor fits the enclosure design. Verify that the 1.6mH inductance meets the noise attenuation needs. Confirm that quick-connect terminals are compatible with the wiring harness. Check voltage ratings (115V/250VAC) against the mains supply.
Part Context
This component belongs to the DP series of power line filter modules from Delta Electronics. It is part of a family of high-performance filters designed for general-purpose EMI/EMC suppression. The series includes various current ratings and configurations to suit different power requirements.
Replacement Considerations
Consult official Delta Electronics substitution guides for verified alternatives. Cross-reference specifications such as current rating, inductance, and mounting style when considering substitutes.
FAQ
What is the inductance value of the 05DRCG5?
The inductance is 1.6mH.
What certifications does the 05DRCG5 hold?
It holds CSA, UR, and VDE certifications.
What is the operating temperature range?
The operating temperature range is -25°C to 100°C.
