05DRCW5

Overview

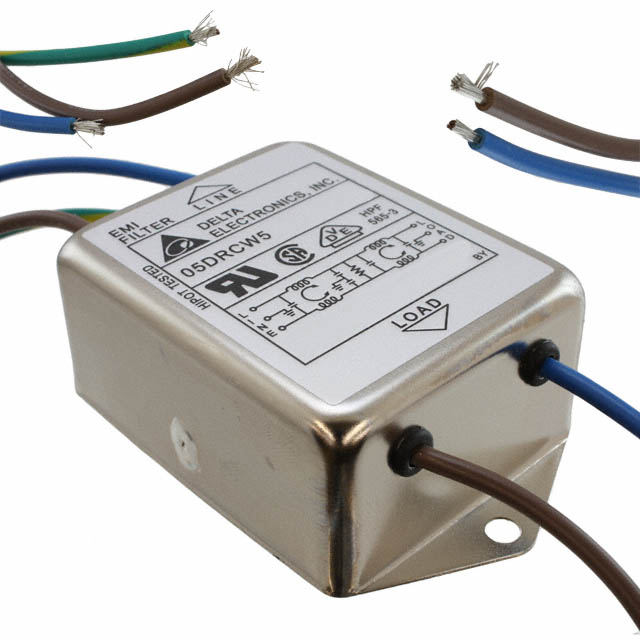

The Delta Electronics 05DRCW5 is a general-purpose, two-stage power line filter designed for single-phase applications. It supports nominal AC voltages of 115V and 250V with a rated current capacity of 5A. The unit features chassis mounting and utilizes wire leads for connection. Key electrical specifications include a maximum leakage current of 450 µA. This component serves as an EMC/EMI line filter to suppress electromagnetic interference in power supply circuits.

Feature Summary

• Two-stage filtering architecture for enhanced noise suppression
• Single-phase EMC/EMI line filter design
• Chassis mount construction with wire lead termination

Applications

• Industrial equipment power input stages
• Medical device power supplies
• General purpose electronic systems requiring EMI reduction

Procurement Notes

Verify the specific voltage rating (115V or 250V) required for your application against the datasheet before procurement. Confirm that the 5A current rating and 450 µA leakage current meet system safety and performance standards. Ensure chassis mounting hardware is compatible with the filter's physical dimensions. Check for RoHS compliance status if environmental regulations apply to your manufacturing process.

Selection Notes

Select this model when a two-stage filtering solution is necessary for single-phase AC lines up to 250VAC. It is suitable for applications requiring low leakage current and robust chassis mounting. Consider the wire-lead termination style for integration into custom wiring harnesses or terminal blocks. Evaluate space constraints as it requires dedicated chassis mounting area.

Part Context

The 05DRCW5 belongs to the DR series of power line filters from Delta Electronics. This series focuses on general-purpose electromagnetic interference suppression for AC power inputs. The component is part of Delta's lineup of passive filtering solutions designed to ensure regulatory compliance for electronic emissions.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Verify compatibility with existing circuit designs if considering alternative manufacturers.
