05DRDG3S

Overview

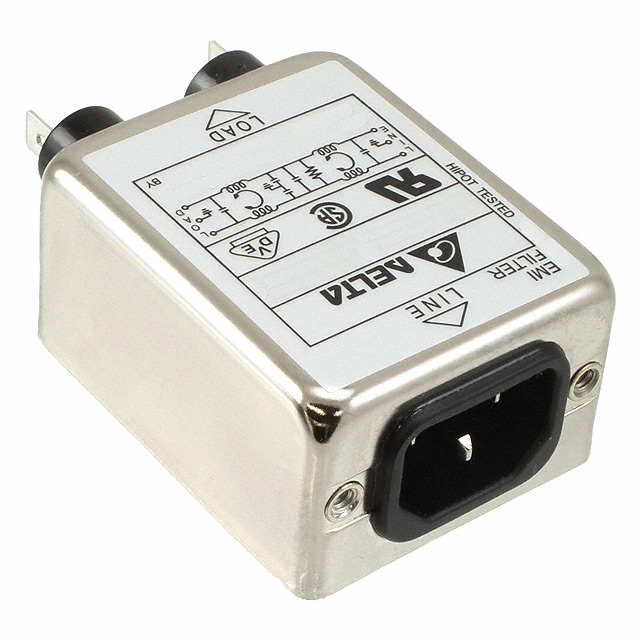

The Delta Electronics 05DRDG3S is a single-phase EMI/RFI power line filter designed for chassis mounting. It features an IEC 320-C14 inlet and quick connect terminals. The component supports rated AC voltages of 115 VAC and 250 VAC with a current rating of 5 A at 50/60 Hz. It utilizes a two-stage filtering architecture to suppress electromagnetic interference on power lines.

Feature Summary

• Two-stage filtering architecture for enhanced noise suppression
• IEC 320-C14 connector interface for standardized power entry
• Quick connect terminal style for simplified assembly

Applications

• Industrial equipment power input stages
• Medical device power supplies
• Information technology hardware filtering

Procurement Notes

Verify the specific datasheet revision and RoHS compliance status directly with Delta Electronics or authorized distributors before procurement. Confirm that the quick connect terminal specifications match the mating connectors in the target design. Ensure chassis mounting dimensions align with the enclosure constraints.

Selection Notes

Select this component when a single-phase, 5 A filtered power entry module is required. The two-stage design offers superior attenuation compared to single-stage alternatives. Verify compatibility with both 115 VAC and 250 VAC operating environments. Ensure the chassis mount form factor fits the available panel space.

Part Context

This part belongs to the Delta Electronics GE series of AC power entry modules. These components are engineered for reliable EMI suppression in commercial and industrial applications. The series provides various current ratings and termination options to suit different system integration needs.

Replacement Considerations

Consult official substitution lists from Delta Electronics for verified equivalents. Generic replacements may not match the two-stage filtering performance or mechanical footprint.
