Product Detailed Parameters
- Description：LINE FILTER 115V/250VAC 6A CHASS
- Series：DC
- Mfr：Delta Electronics
- Package：Box
- Filter Type：Single Phase
- Configuration：Two Stage
- Voltage - Rated DC：-
- Voltage - Rated AC：115V, 250V
- Current：6:00 AM
- Frequency - Operating：50/60Hz
- Applications：General Purpose
- Approval Agency：CSA, UR, VDE
- Operating Temperature：-
- Mounting Type：Chassis Mount
- Termination Style：Quick Connect
- Inductance：-
- Voltage - Rated AC (Phase to Phase)：-
Download product information
Overview

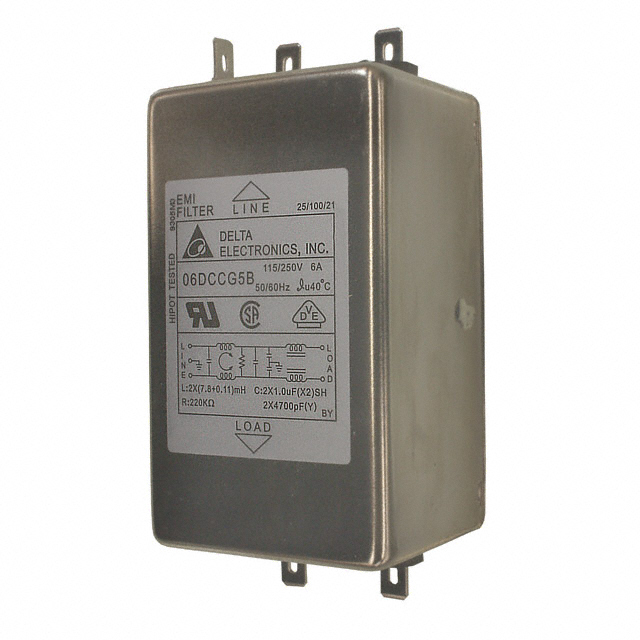

The Delta Electronics 06DCCG5B is a single-phase EMC/EMI power line filter module designed for chassis mounting. It supports an AC voltage rating of 115V and 250V with a continuous current capacity of 6A at operating frequencies of 50/60Hz. The component features a two-stage filtering configuration and utilizes quick connect terminals for circuit attachment. Certified by CSA, UR, and VDE, it is suitable for general-purpose applications requiring switching transient suppression.
Feature Summary
- Two-stage EMI/EMC filtering architecture for enhanced noise suppression
- Chassis mount design with quick connect termination style
- Certified to CSA, UR, and VDE safety standards
Applications
- Switching transient suppression in industrial equipment
- General-purpose power line filtering for electronic devices
- AC power entry modules requiring certified EMI reduction
Procurement Notes
Verify the specific part number against official Delta Electronics documentation to ensure compatibility with system requirements. Confirm that the chassis mount form factor and quick connect terminal type align with the intended enclosure design. Check for any recent product change notifications or end-of-life status updates prior to finalizing procurement decisions.
Selection Notes
Select this component when a single-phase, two-stage EMI filter is required for chassis installation. Ensure the application operates within the 115V/250VAC range and draws no more than 6A. Verify that quick connect terminals are compatible with the mating connectors in the design. Consider certification requirements such as UL or VDE if mandated by regional regulations.
Part Context
This component belongs to the DP series of power line filter modules manufactured by Delta Electronics. These filters are engineered for general-purpose use in environments where electromagnetic interference must be controlled. The series offers various configurations tailored to different current and voltage ratings while maintaining standardized mounting and connection interfaces.
Replacement Considerations
Consult official Delta Electronics substitution guides for verified alternatives. Cross-reference specifications such as current rating, voltage limits, and physical dimensions before considering third-party equivalents.
