06DKBG5B

Overview

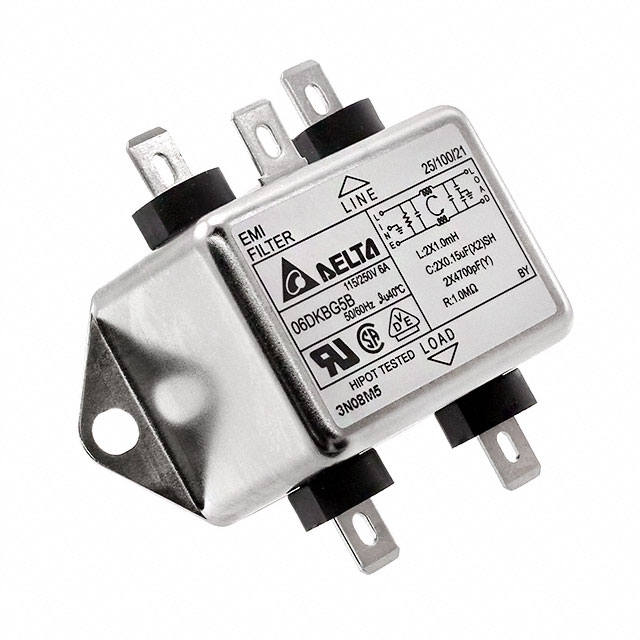

The Delta Electronics 06DKBG5B is a single-phase EMI/EMI line filter module designed for chassis mounting. It supports rated voltages of 115VAC and 250VAC with a current rating of 6A at 50/60Hz. The component features lug-to-lug connections and offers high-potential insulation ratings of 2250VDC line-to-ground and 1450VDC line-to-line. Maximum leakage currents are specified at 0.25mA (115VAC, 60Hz) and 0.45mA (250VAC, 50Hz).

Feature Summary

• Provides effective suppression of both line-to-line and line-to-ground electromagnetic interference noise.
• Constructed as a single-stage general-purpose filter unit suitable for standard power line applications.

Applications

• Industrial equipment requiring EMI suppression
• Commercial machinery power input stages
• General purpose electronic enclosures

Procurement Notes

Verify the specific revision status before procurement, as this part number may be subject to discontinuation or lifecycle changes. Confirm that the lug-to-lug termination style matches the target chassis panel hole spacing and terminal block requirements. Ensure the 6A current rating aligns with the system's maximum continuous load to prevent thermal degradation during operation.

Selection Notes

Select this model when a compact, single-phase solution is required for chassis-mounted installation. The 6A rating suits moderate power loads, while the wide voltage acceptance covers common global mains standards. Consider the physical dimensions and lug configuration against available panel space and wiring constraints to ensure mechanical compatibility.

Part Context

This component belongs to Delta Electronics' general-purpose power line filter series. These filters are engineered to meet international safety certifications including UL, CSA, and VDE approvals. The series provides standardized solutions for reducing conducted emissions in AC power lines across various industrial and commercial sectors.

Replacement Considerations

Consult official Delta documentation for direct cross-references. Verify that any substitute maintains identical current ratings, voltage tolerances, and mounting geometry to ensure seamless integration without redesigning the chassis interface.
