06DPCG5

Overview

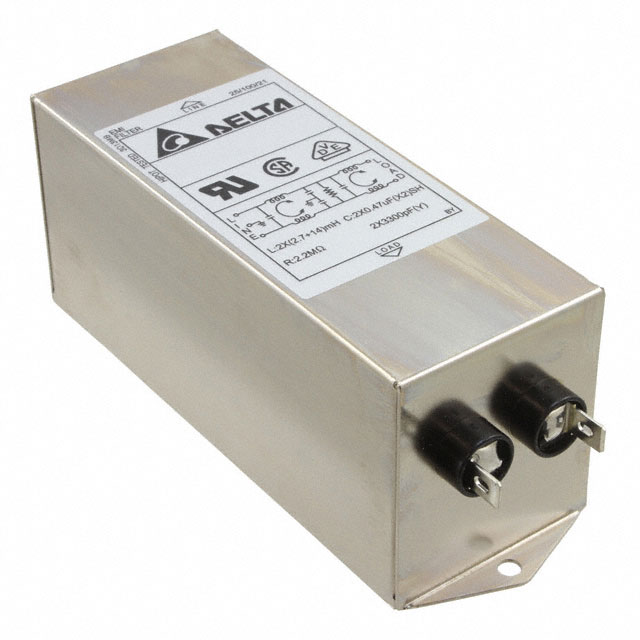

The Delta Electronics 06DPCG5 is a single-phase EMC/EMI power line filter designed for chassis mounting. It supports AC voltages of 115V and 250V at 50/60Hz with a rated current of 6A. The unit features a two-stage configuration and utilizes quick-connect terminals for installation. Certified by CSA, UR, and VDE, it complies with RoHS3 standards and operates within standard industrial temperature ranges.

Feature Summary

• Two-stage filtering architecture for enhanced noise suppression
• Chassis mount design with quick-connect termination style
• Certified for safety compliance including CSA, UR, and VDE

Applications

• Medical equipment power entry modules
• Industrial control systems
• General purpose AC power conditioning

Procurement Notes

Verify the specific ordering suffix to ensure correct terminal type and certification requirements. Confirm lead times as availability may vary. Check for end-of-life notifications or product change notices prior to finalizing procurement plans to ensure long-term supply stability.

Selection Notes

Select this component when a robust, certified EMI filter is required for single-phase AC applications up to 6A. Ensure the chassis mounting footprint and quick-connect terminal spacing match the system design constraints. Verify that the two-stage attenuation characteristics meet the specific electromagnetic compatibility standards of the target application.

Part Context

This part belongs to the DP series of power line filters from Delta Electronics. It is distinct from other variants in the lineup based on its specific 6A rating and two-stage topology. The component serves as a critical interface for reducing conducted emissions in sensitive electronic environments.

Replacement Considerations

Consult official substitution guides for compatible alternatives. Verify electrical ratings and physical dimensions before replacing. Cross-reference certifications to ensure regulatory compliance remains intact.
