06DPCG5B

Overview

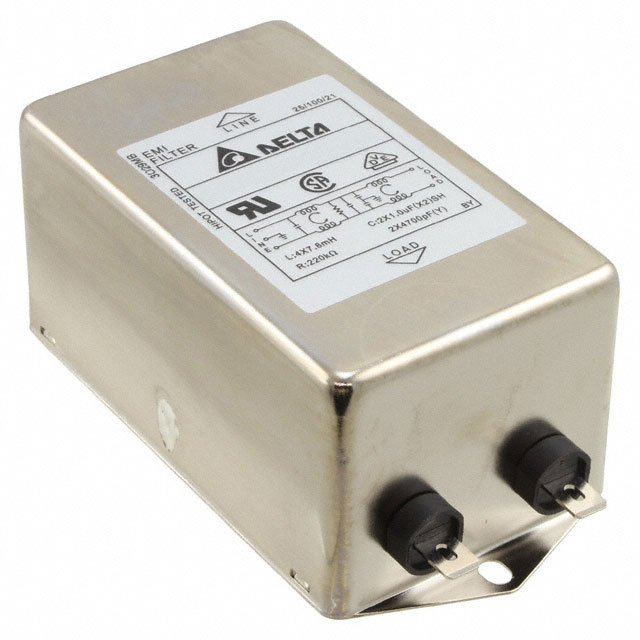

The Delta Electronics 06DPCG5B is a single-phase, two-stage power line filter designed for chassis mounting. It features a current rating of 6 A and voltage ratings of 115 VAC and 250 VAC. The unit utilizes lug-lug termination and operates at frequencies of 50 Hz and 60 Hz. Key electrical specifications include a leakage current ranging from 0.4 mA to 0.8 mA. The component holds UL, CSA, and VDE certifications and is packaged in bulk.

Feature Summary

• Two-stage filtering architecture for enhanced noise suppression
• Chassis mount design with lug-lug termination
• Compliant with major safety standards including UL, CSA, and VDE

Applications

• Industrial equipment power conditioning
• Medical device power supply input filtering
• General purpose EMI/EMI suppression in AC power lines

Procurement Notes

Verify the specific datasheet version as this component is listed as End-of-Life or Obsolete by the manufacturer. Confirm availability through authorized distributors only, as stock levels may be limited. Ensure the lug-lug termination style matches your chassis mounting requirements before ordering.

Selection Notes

Select this model when a two-stage attenuation profile is required for 6 A applications. Compare against the 06DPCG5C if wire termination is preferred over lugs. Verify that the 0.4 to 0.8 mA leakage current fits within your system's safety ground limits.

Part Context

This part belongs to the DP series of EMC/EMI filters from Delta Electronics. It is functionally similar to the 06DPCG5C but differs in termination style, offering lug connections instead of quick-connect tabs. Both are single-phase, two-stage filters rated for 6 A.

Replacement Considerations

The 06DPCG5C is a documented substitute within the same series, offering identical electrical performance but utilizing quick-connect terminals instead of lugs. Verify mechanical fitment compatibility before substitution.
