06DPCG5C

Overview

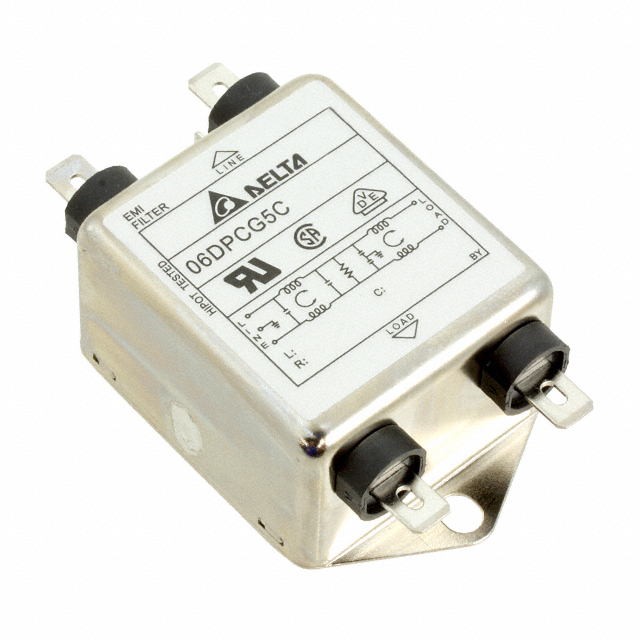

The Delta Electronics 06DPCG5C is a single-phase EMC/EMI line filter designed for chassis mounting. It features a two-stage configuration with a rated current of 6 A and operates at frequencies of 50/60 Hz. The unit supports AC voltages of 115V and 250V, incorporating an inductance of 970µH. Termination is achieved via quick connect terminals. The component holds CSA, UR, and VDE certifications and complies with RoHS3 standards.

Feature Summary

• Two-stage filtering architecture for enhanced noise suppression
• Chassis mount installation with quick connect termination
• Certified compliance with international safety standards

Applications

• General purpose power line filtering
• Industrial equipment EMI mitigation
• Electronic device power entry modules

Procurement Notes

Verify the specific ordering suffix to ensure correct terminal type and certification requirements. Confirm end-of-life status as the last sale date is August 31, 2026. Check datasheet revisions for any electrical characteristic updates prior to integration into final designs.

Selection Notes

Select this model for applications requiring 6A capacity and dual voltage support. Ensure chassis mounting space accommodates the physical dimensions. Verify that quick connect terminals match existing wiring harness specifications. Consider thermal management requirements based on ambient operating conditions.

Part Context

This component belongs to the DP series of power line filters from Delta Electronics. It is part of a broader family of EMI solutions designed for various current ratings and voltage configurations. The series emphasizes robust construction and certified safety performance for global market deployment.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Consult manufacturer engineering for cross-reference options if discontinuation occurs.
