06DPCG5CM

Overview

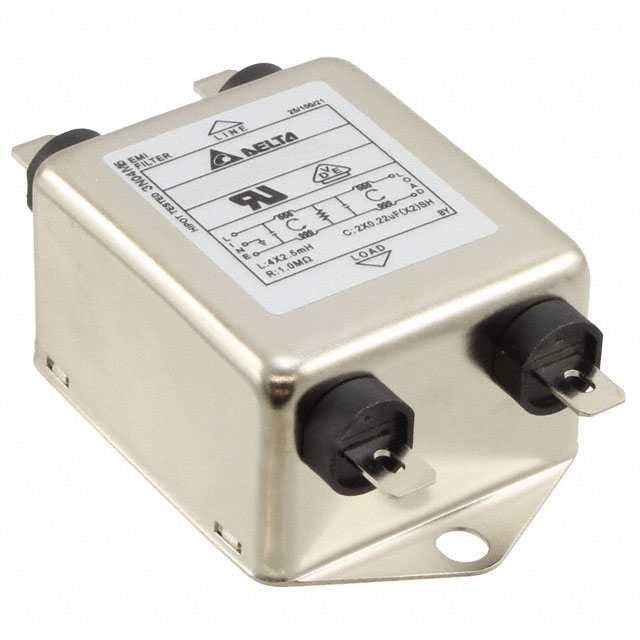

The Delta Electronics 06DPCG5CM is a single-phase EMC/EMI line filter designed for chassis mounting. It operates at rated AC voltages of 115V and 250V with a current rating of 6A at 50/60Hz. The component features a two-stage configuration and utilizes quick-connect terminals for installation. Certified by CSA, UR, and VDE, it complies with RoHS3 standards and carries an EAR99 classification.

Feature Summary

• Two-stage filtering architecture for enhanced noise suppression
• Chassis mount design with quick-connect termination style
• Certified compliance with international safety standards including CSA, UR, and VDE

Applications

• General purpose power line filtering
• Switching transient noise reduction in industrial equipment
• EMC mitigation in AC power input stages

Procurement Notes

Verify the specific suffix 'CM' against official Delta documentation to confirm exact mechanical or electrical variations compared to the base model. Confirm end-of-life status and last purchase dates via manufacturer notifications prior to procurement planning.

Selection Notes

Select this component when a two-stage EMI filter is required for 6A applications at 115V/250VAC. Ensure the chassis mounting type and quick-connect terminal style match the system's physical integration requirements and wiring constraints.

Part Context

This part belongs to the DP series of line filters manufactured by Delta Electronics. It serves as a specialized component for electromagnetic interference suppression in AC power systems, distinct from DC-DC converters or LED drivers offered by the same manufacturer.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided source material.
