06DPCW5

Overview

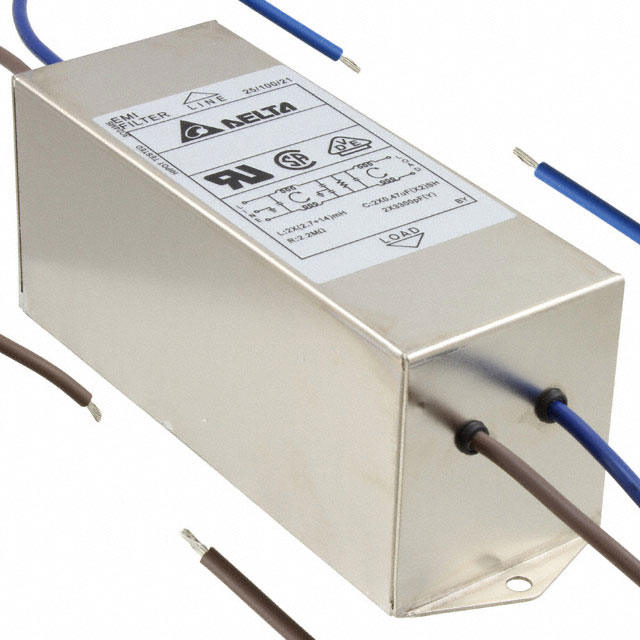

The Delta Electronics 06DPCW5 is a single-phase, two-stage switching transient filter designed for chassis mounting. It supports an AC voltage rating of 115 VAC and 250 VAC with a continuous current capacity of 6 A. The unit operates at standard frequencies of 50 Hz and 60 Hz. It features wire-to-wire termination and maintains a leakage current of 2 mA. The component holds UL, CSA, and VDE certifications and is packaged in bulk.

Feature Summary

• Two-stage filtering configuration for enhanced electromagnetic interference suppression
• Chassis mount design with wire-to-wire termination for secure installation
• Certified for international safety standards including UL, CSA, and VDE

Applications

• General-purpose power line filtering
• Switching transient suppression in electronic equipment
• EMC/EMI mitigation in industrial control systems

Procurement Notes

Verify the specific datasheet revision before procurement, as component specifications may undergo updates. Confirm that the wire-to-wire termination style matches the system wiring requirements. Ensure the chassis mounting dimensions are compatible with the enclosure design. Check for any recent product change notifications regarding material or performance adjustments.

Selection Notes

Select this model when a single-phase solution is required for 115 VAC or 250 VAC circuits carrying up to 6 A. The two-stage architecture provides superior attenuation compared to single-stage alternatives. Verify that the 2 mA leakage current meets the safety isolation requirements of the target application. Ensure the chassis mount form factor fits the available space in the equipment housing.

Part Context

This component belongs to the DP series of power line filters manufactured by Delta Electronics. The series includes various ratings for different current and voltage applications. The 06DPCW5 specifically addresses general-purpose needs within the 6 A current range. It is part of a broader portfolio of EMC/EMI solutions designed for industrial and commercial power conditioning.

Replacement Considerations

The 03DPCW5 serves as a lower-current alternative rated for 3 A. For higher current requirements, the 10DPCW5 offers a 10 A rating within the same series. These substitutes share similar mounting styles and certification profiles but differ in electrical capacity.
