06DSCG5

Overview

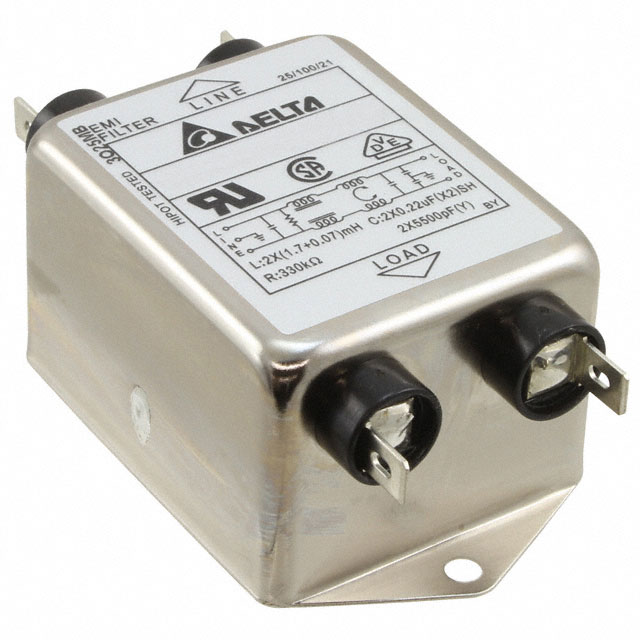

The Delta Electronics 06DSCG5 is a single-phase, two-stage EMC/EMI power line filter designed for chassis mounting. It supports AC voltages of 115V and 250V with a rated current of 6A at 50/60Hz. The component utilizes lug-lug terminal connections and holds CSA, UL, and VDE certifications. It complies with RoHS3 standards and features an ECCN classification of EAR99.

Feature Summary

• Two-stage filtering architecture for enhanced noise suppression
• Chassis mount installation style with lug-lug terminals
• Certified to CSA, UL, and VDE safety standards

Applications

• General purpose EMI/EMC line filtering
• Industrial equipment power conditioning
• Electronic device input protection

Procurement Notes

Verify the specific datasheet version for the 06DSCG5 model, as official documentation may be limited in public repositories compared to similar DP series variants. Confirm mechanical dimensions and terminal specifications against the manufacturer's drawing prior to integration. Ensure compliance requirements match the target market regulations.

Selection Notes

Select this component for applications requiring single-phase filtering at 6A. Compare against the 06DPCG5C if quick-connect terminals are preferred over lugs. Verify that the chassis mounting footprint aligns with the enclosure design. Check leakage current specifications if sensitive to ground currents.

Part Context

This part belongs to the Delta Electronics DP series of power line filters. It shares the same voltage and current ratings as the 06DPCG5C but differs in terminal type. The series is designed for general-purpose electromagnetic interference suppression in AC power lines.

Replacement Considerations

The 06DPCG5C is a functional equivalent within the same series but uses quick-connect terminals instead of lugs. Verify mechanical compatibility before substitution.
