Product Detailed Parameters
- Description：LINE FILTER 115V/250VAC 6A CHASS
- Series：DV
- Mfr：Delta Electronics
- Package：Box
- Filter Type：Single Phase
- Configuration：Two Stage
- Voltage - Rated DC：-
- Voltage - Rated AC：115V, 250V
- Current：6:00 AM
- Frequency - Operating：50/60Hz
- Applications：General Purpose
- Approval Agency：CSA, UR, VDE
- Operating Temperature：-
- Mounting Type：Chassis Mount
- Termination Style：Quick Connect
- Inductance：L1 - 1.7mH, L2 - 70mH
- Voltage - Rated AC (Phase to Phase)：-
Download product information
Overview

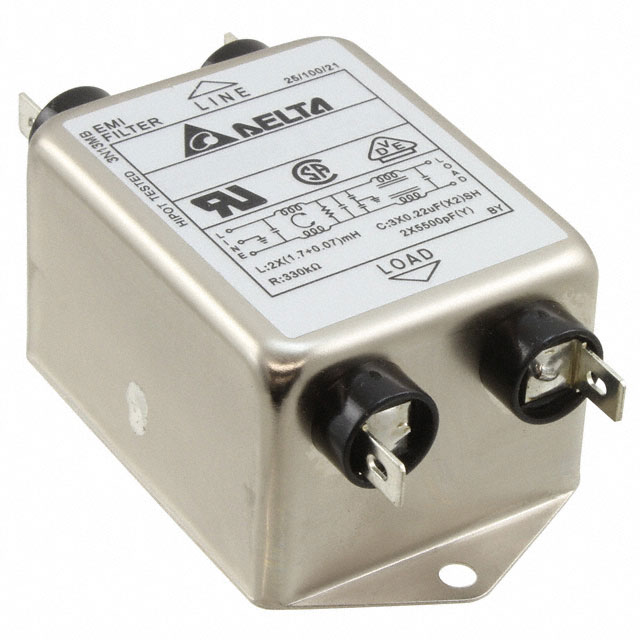

The Delta Electronics 06DVCG5 is a single-phase EMC/EMI line filter designed for chassis mounting. It supports AC voltages of 115V and 250V at operating frequencies of 50Hz and 60Hz. The component handles a current rating of 6A and utilizes a two-stage configuration to provide effective noise suppression. Termination is achieved via quick connect terminals, facilitating integration into power supply circuits.
Feature Summary
- Two-stage filtering architecture for enhanced electromagnetic interference reduction
- Single-phase design compatible with standard AC power lines
- Chassis mount installation style for secure mechanical attachment
Applications
- Industrial equipment power input stages
- Medical device power supplies
- General purpose electronic systems requiring EMI suppression
Procurement Notes
Verify the specific datasheet version for the 06DVCG5 model to confirm terminal type and certification status. Ensure compatibility with system voltage ratings of 115V or 250VAC. Confirm that the quick connect termination matches existing wiring harnesses. Check for any recent product change notifications regarding manufacturing updates.
Selection Notes
Select this component when a single-phase, two-stage filter is required for 6A applications. It is suitable for environments needing chassis-mounted solutions with quick connect accessibility. Compare against similar DP series models if different current ratings or termination styles are needed. Ensure the operating frequency range of 50/60Hz aligns with the target power grid specifications.
Part Context
This part belongs to the Delta Electronics DP series of power line filters. These components are engineered for general-purpose EMI/EMC compliance in AC power inputs. The series offers various current ratings and termination options to suit diverse industrial and commercial power conditioning requirements.
Replacement Considerations
Consult official Delta documentation for direct substitutes within the DP series. Verify that alternative parts match the 6A rating, 115V/250VAC voltage, and two-stage topology. Ensure physical dimensions and quick connect terminal spacing are compatible with the existing chassis cutout and wiring layout.
