06DWCG5

Overview

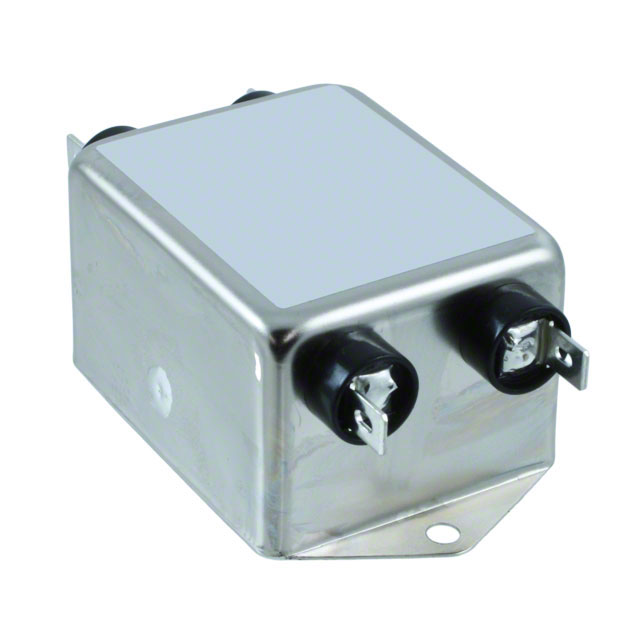

The Delta Electronics 06DWCG5 is a single-phase EMC/EMI power line filter designed for chassis mounting. It supports AC voltage ratings of 115V and 250V with a current capacity of 6A at 50/60Hz. The unit features a two-stage configuration and utilizes lug-to-lug terminal connections. Certified by CSA, UL, and VDE, it complies with RoHS3 standards.

Feature Summary

• Two-stage filtering architecture for enhanced noise suppression
• Chassis mount design with lug-to-lug termination
• Certified for international safety compliance

Applications

• General purpose electronic equipment
• Industrial control systems
• Medical devices

Procurement Notes

Verify the specific part number against official Delta Electronics documentation to ensure compatibility with your system requirements. Confirm that the chassis mounting style and lug-to-lug termination meet your assembly specifications. Check for any recent product change notifications or end-of-life updates directly from the manufacturer before finalizing procurement decisions.

Selection Notes

Select this component when a single-phase, two-stage EMI filter is required for chassis installation. Ensure the operating environment matches the specified voltage and current ratings. Verify that the lug-to-lug connection method aligns with your wiring harness design and that the physical dimensions fit the available enclosure space.

Part Context

This component belongs to the DP series of power line filters manufactured by Delta Electronics. It is engineered for general-purpose applications requiring reliable electromagnetic interference suppression in AC power lines.

Replacement Considerations

Consult official Delta Electronics substitution guides for verified alternative part numbers. Do not assume cross-compatibility with other manufacturers' filters without verifying electrical parameters and mechanical dimensions.
