07TDVST2-1

Overview

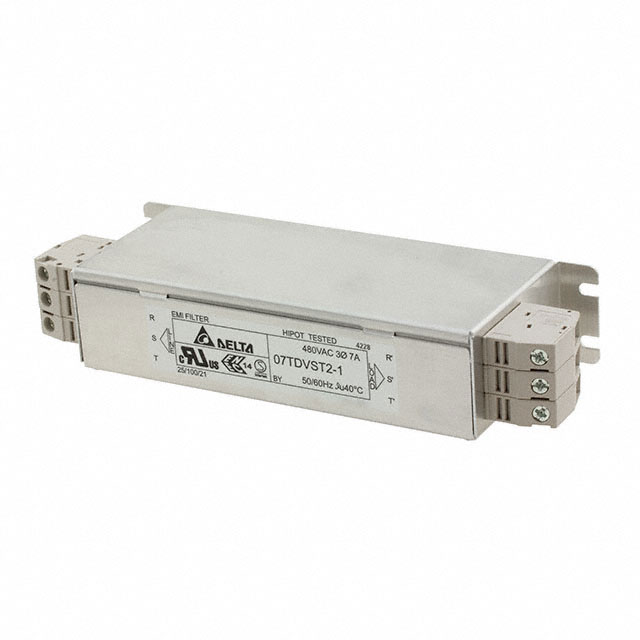

The Delta Electronics 07TDVST2-1 is a three-phase, delta-configured EMC/EMI line filter designed for industrial power systems. It operates at 480VAC and supports frequencies of 50/60Hz with a rated current of 7A. The unit features vertical orientation and chassis mounting via terminal blocks. It functions within an operating temperature range of -25°C to 100°C.

Feature Summary

• Engineered for three-phase delta configurations to suppress electromagnetic interference in industrial environments
• Utilizes chassis mounting with terminal block connections for secure installation
• Certified under cURus, ENEC, and SEMKO standards for regional compliance

Applications

• Industrial power systems requiring EMI suppression
• Three-phase equipment operating at 480VAC
• Automation machinery needing stable power quality

Procurement Notes

Verify the specific ordering suffix against official Delta Electronics documentation to ensure correct configuration. Confirm that the terminal block interface matches your system requirements. Check for current certification status such as cURus or ENEC if required by local regulations. Ensure the 7A rating aligns with your load specifications before procurement.

Selection Notes

Select this component when a three-phase delta filter is required for 480VAC applications. Ensure the 7A current capacity meets the circuit demands. Verify that chassis mounting with terminal blocks fits the enclosure design. Confirm compatibility with 50/60Hz operation and the specified temperature range for the installation environment.

Part Context

This model belongs to the TDV series of power line filters from Delta Electronics. It is part of a portfolio focused on electromagnetic compatibility solutions for industrial automation. The product remains active in the manufacturer's lineup, providing standardized filtering for three-phase power distribution networks.

Replacement Considerations

Consult official Delta Electronics substitution guides for verified alternatives. Cross-reference pinouts and electrical ratings carefully. Generic equivalents may not match the specific delta configuration or certification requirements.
