07TDVST2

Overview

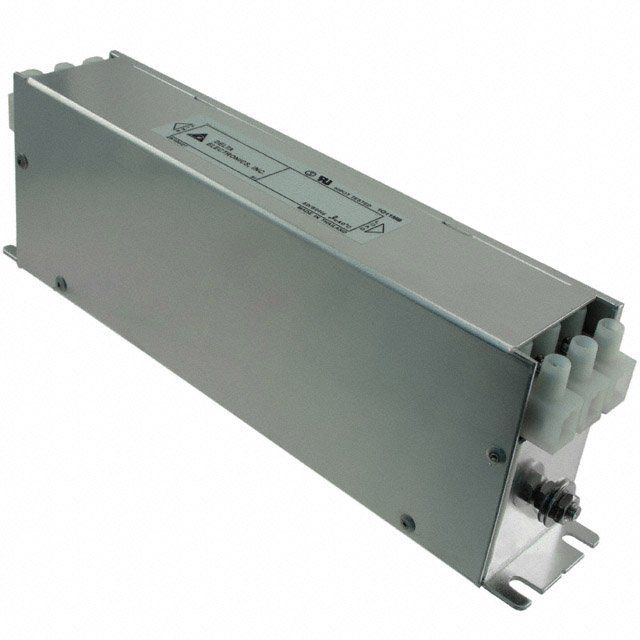

The Delta Electronics 07TDVST2 is a three-phase, three-wire vertical EMI/EMC line filter designed for industrial power systems. It operates at 480VAC with a current rating of 7A at 50/60Hz. The unit features a chassis-mount configuration with terminal block-to-terminal block connections. This component provides effective electromagnetic interference suppression for sensitive equipment in demanding electrical environments.

Feature Summary

• Vertical three-phase three-wire topology for compact integration
• Chassis-mount design with terminal block input and output connections
• Engineered for 480VAC industrial power system operation

Applications

• Industrial power distribution panels
• Electrical cabinets requiring EMI suppression
• Three-phase motor drive systems

Procurement Notes

Verify the specific suffix designation when ordering, as Delta utilizes alphanumeric codes to define connection types such as lugs, screws, or wires. Confirm that the required voltage and current ratings align with the 480VAC and 7A specifications. Ensure the chassis mounting style matches the enclosure design. Cross-reference the datasheet to confirm terminal block compatibility before finalizing procurement.

Selection Notes

Select this model for applications requiring vertical three-phase filtering in confined spaces. The terminal block interface facilitates straightforward wiring within standard industrial enclosures. Consider the 7A current limit when sizing for load requirements. Verify that the chassis-mount form factor fits the available panel space. Ensure the operating frequency range covers the local power grid standards.

Part Context

This component belongs to the TDV series of vertical three-phase filters from Delta Electronics. The series includes variants with different current ratings and connection options. The TDV line focuses on providing reliable EMI suppression for industrial machinery while maintaining a low profile suitable for dense panel layouts.

Replacement Considerations

Check the TDV series catalog for models with higher current capacities if the 7A limit is insufficient. Verify that alternative parts maintain the same vertical orientation and terminal block connection style to ensure mechanical compatibility.
