0805Y1000102MXTE01

Overview

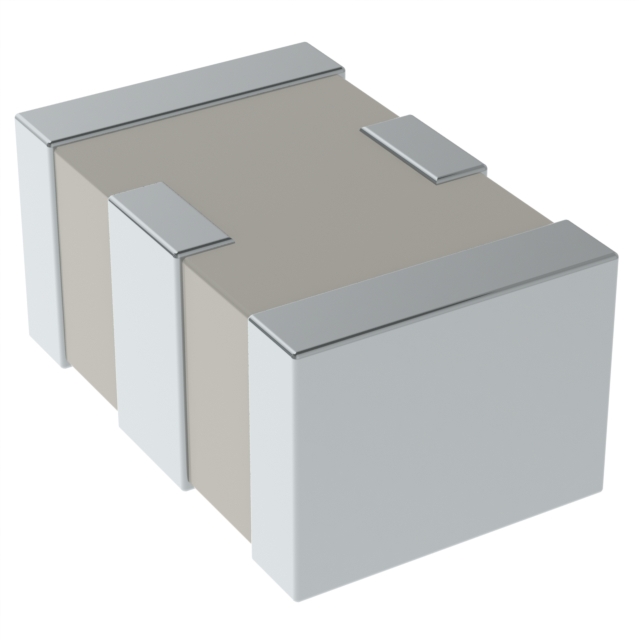

The Knowles Syfer 0805Y1000102MXTE01 is a three-terminal EMI filter capacitor in an 0805 surface-mount package. It features a 100V DC voltage rating and a capacitance of 1000pF with ±20% tolerance. The dielectric material is X7R, ensuring stability across a temperature range of -55°C to +125°C. This component utilizes the FlexiCap™ flexible termination technology for enhanced mechanical reliability.

Feature Summary

• Three-terminal architecture designed for effective electromagnetic interference filtering
• Flexible termination construction accommodates board bending and thermal cycling stress

Applications

• Boardflex sensitive circuit assemblies
• Automotive electronics requiring AEC-Q200 qualification
• High-reliability space applications

Procurement Notes

Verify the specific suffix 'E01' against official documentation to confirm the three-terminal configuration. Standard two-terminal variants exist within the same series; ensure the selected part matches the required filter topology. Confirm RoHS compliance status directly from the manufacturer's current datasheet before integration.

Selection Notes

Select this component when both high-frequency noise suppression and mechanical durability are critical. The three-terminal design offers superior shielding compared to standard two-terminal capacitors. Ensure the PCB layout supports the specific grounding requirements of the third terminal to maximize filtering performance.

Part Context

This part belongs to the Syfer FlexiCap™ family, which incorporates proprietary flexible termination materials. These terminations provide increased tolerance to temperature cycling exceeding 1,000 times without cracking, distinguishing them from conventional MLCCs.

Replacement Considerations

Direct substitutes must match the three-terminal structure and 0805 footprint. Verify that alternative parts support the same X7R dielectric characteristics and voltage ratings to maintain circuit integrity.
