080S.00600.00

Overview

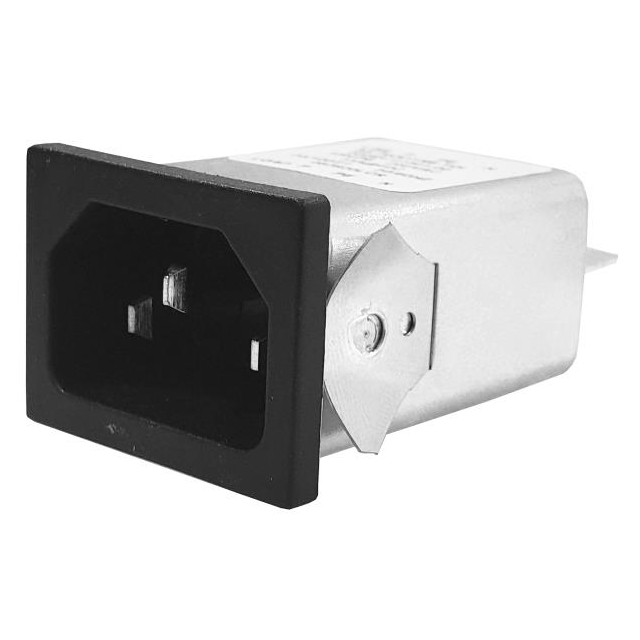

The Astrodyne TDI 080S.00600.00 is a single-phase EMC/EMI line filter module rated for 250VAC and 6A. It utilizes an IEC 320-C14 connector interface with quick connect termination. Designed for 50/60Hz operation, this unit provides single-stage filtering to mitigate electromagnetic interference in AC power circuits.

Feature Summary

• Integrates IEC 320-C14 receptacle with built-in EMI suppression
• Supports snap-in mounting configuration for chassis integration
• Utilizes quick-connect terminals for simplified circuit assembly

Applications

• Medical equipment power entry
• Industrial control systems
• Commercial IT hardware

Procurement Notes

Verify the specific datasheet version for the 080S.00600.00 to confirm compliance certifications such as UL or CE. Ensure the application voltage does not exceed 250VAC and current remains within the 6A limit. Confirm that the snap-in mechanical form factor matches the enclosure design requirements before finalizing procurement.

Selection Notes

Select this component when a compact, integrated solution combining power inlet and filtering is required. The 6A rating suits moderate load applications. Verify that the quick-connect tab dimensions align with downstream PCB or wire harness connectors. Consider thermal derating if ambient temperatures approach maximum operating limits.

Part Context

This model belongs to the Astrodyne TDI 080 series of filtered power entry modules. These units are engineered to replace separate inlet and filter assemblies, reducing board space and assembly complexity. The series is commonly specified in OEM designs requiring certified EMI performance in a standardized form factor.

Replacement Considerations

Direct substitutes include the 080SM.00600.00 variant, which shares identical electrical ratings but may differ in mechanical housing details. Cross-reference pinout configurations and mounting hole patterns to ensure physical compatibility during retrofitting.
