080SV.00300.00

Overview

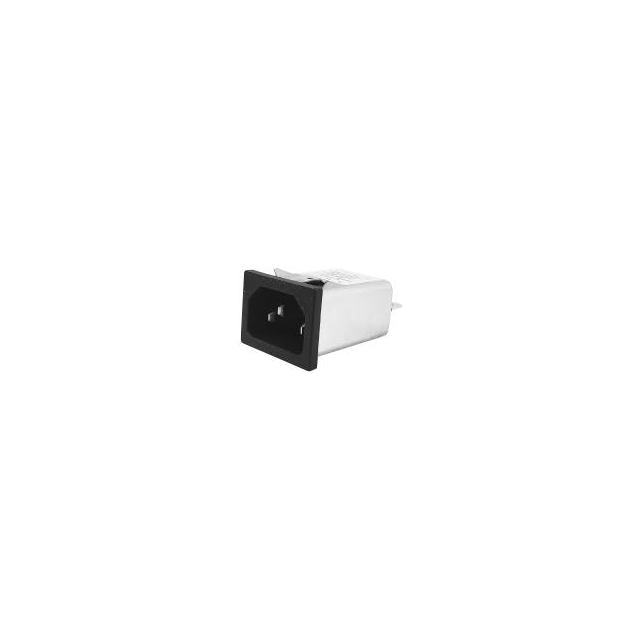

The Astrodyne TDI 080SV.00300.00 is a single-stage IEC inlet filter designed for vertical snap-in mounting. It features a C14 connector interface and quick-connect termination type. The component is rated for a continuous current of 3 A and a voltage of 250 VAC. It operates at standard frequencies of 50 Hz and 60 Hz. The unit provides filtered power input capabilities within the 080S(M) series.

Feature Summary

• Integrates filtering functionality directly into an IEC C14 inlet module
• Utilizes a snap-in mounting style for rapid panel installation
• Employs quick-connect terminals for simplified circuit wiring

Applications

• Medical equipment power inputs
• Industrial control panels
• Test and measurement instruments

Procurement Notes

Verify that the specific application requires a single-stage filtration topology, as this model does not offer multi-stage attenuation. Confirm that the 3 A current rating aligns with the maximum load requirements to prevent thermal overload. Ensure the chassis opening dimensions accommodate the vertical snap-in form factor without interference from adjacent components or panel thickness variations.

Selection Notes

Select this component when a compact, integrated solution combining an IEC inlet and EMI suppression is required. It is suitable for applications where space constraints preclude separate filter and inlet assemblies. Consider the leakage current specifications if patient safety or sensitive analog circuits are involved. Verify compatibility with the mating IEC C13 cable connectors used in the system design.

Part Context

This part belongs to the Astrodyne TDI 080S(M) series of filtered AC power inlets. These modules combine standard IEC receptacles with internal filtering stages to reduce conducted emissions. The series offers various current ratings and mounting options, providing designers with flexible solutions for meeting regulatory compliance standards in compact enclosures.

Replacement Considerations

Cross-reference with other Astrodyne TDI 080SV variants for different current ratings. Check competitor offerings such as TE Connectivity or Amphenol for equivalent snap-in filtered IEC inlets. Ensure mechanical dimensions and terminal pitch match existing board layouts when substituting.
