080SVH.00300.00

Overview

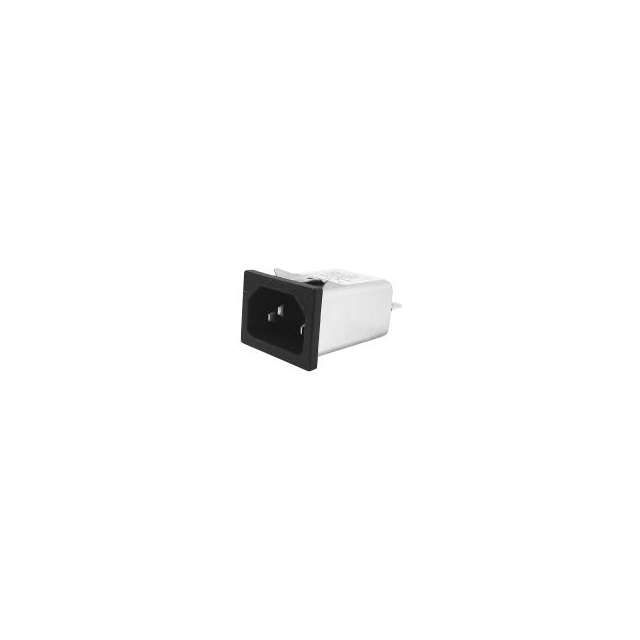

The Astrodyne TDI 080SVH.00300.00 is a single-stage IEC power entry module filter designed for vertical snap-in mounting. It features an IEC C14 connector and supports a current rating of 3 A at 250 VAC. The unit operates at frequencies of 50 Hz and 60 Hz, providing standard electromagnetic interference filtering for general-purpose applications.

Feature Summary

• Vertical snap-in mounting configuration
• Single-stage EMI filtering capability
• Integrated IEC C14 input connector

Applications

• General-purpose electronic equipment
• Industrial control systems
• Medical devices

Procurement Notes

Verify the specific suffix 'H' against official datasheets to confirm performance characteristics, as variations may exist within the series. Ensure compatibility with panel thickness requirements for snap-in installation. Cross-reference manufacturer documentation for precise compliance certifications and environmental operating limits before finalizing procurement.

Selection Notes

Select this component when a compact, vertically oriented power entry solution is required. The 3 A rating suits low-to-medium power loads. Verify that the single-stage filtering meets the specific EMI suppression needs of the target application without requiring additional external components.

Part Context

This part belongs to the 080SVH series of filtered IEC inlets from Astrodyne TDI. These modules are engineered for space-constrained designs where vertical orientation facilitates efficient PCB or chassis integration. The series emphasizes reliability in standard commercial and industrial environments.

Replacement Considerations

Direct substitutes must match the 3 A rating, 250 VAC voltage, vertical snap-in form factor, and IEC C14 interface. Verify electrical parameters and mechanical dimensions against original specifications to ensure functional equivalence.
