084M.01001.00-LS

Overview

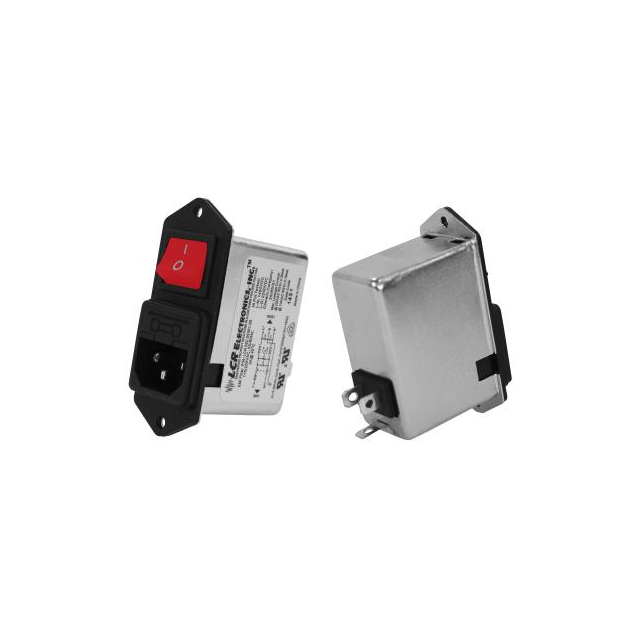

The Astrodyne TDI 084M.01001.00-LS is a filtered AC power entry module designed for single-phase systems. It features an IEC C14 receptacle, a switched function, and integrated filtering. The unit supports a rated current of 10 A and a voltage rating of 250 VAC. It utilizes quick connect termination and panel mount installation. The component includes a double fuse holder and an illuminated switch, suitable for medical-grade applications requiring low leakage current.

Feature Summary

• Integrated EMC/EMI filtering for general-purpose power conditioning
• Illuminated rocker switch with double fuse holder functionality
• Medical-grade filter design optimized for low leakage current

Applications

• Medical equipment power input stages
• Single-phase industrial control panels
• General-purpose electronic enclosures requiring filtered AC input

Procurement Notes

Verify the specific suffix designation when ordering, as variants such as -LS or -RSI may indicate distinct packaging or minor configuration differences. Confirm that the manufacturer's official datasheet aligns with the required medical compliance standards and electrical ratings before finalizing procurement specifications.

Selection Notes

Select this component for applications requiring a compact, single-stage solution combining switching, fusing, and filtering. Ensure the system operates within the 250 VAC and 10 A limits. Verify that the quick-connect terminal type matches the internal wiring harness requirements of the host equipment.

Part Context

This part belongs to the Astrodyne TDI DSC1000 series of power line filters. The series offers various configurations including different current ratings and termination styles. The 084M series specifically targets filtered power entry modules with integrated switching capabilities for professional electronics.

Replacement Considerations

Cross-reference with other Astrodyne TDI models in the 084M series for alternative current ratings. Verify mechanical dimensions and terminal compatibility against generic IEC C14 filtered inlet assemblies if sourcing from third-party manufacturers.
