084M.01001.00

$19.01

Description：LINE FILTER 250VAC 10A CHASS MNT
Series：84
Mfr：Astrodyne TDI
Package：Box

SKU:6b08788ee0bd Category: Power Line Filter Modules Brand: Astrodyne TDI

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：LINE FILTER 250VAC 10A CHASS MNT
Series：84
Mfr：Astrodyne TDI
Package：Box
Filter Type：Single Phase
Configuration：Single Stage
Voltage - Rated DC：-
Voltage - Rated AC：250V
Current：10:00 AM
Frequency - Operating：50/60Hz
Applications：General Purpose
Approval Agency：cURus, VDE
Operating Temperature：-25°C ~ 85°C
Mounting Type：Chassis Mount
Termination Style：IEC 320-C14, Quick Connect
Inductance：-
Voltage - Rated AC (Phase to Ground/Neutral)：-
Voltage - Rated AC (Phase to Phase)：1.45 kV

Download product information

084M.01001.00

Overview

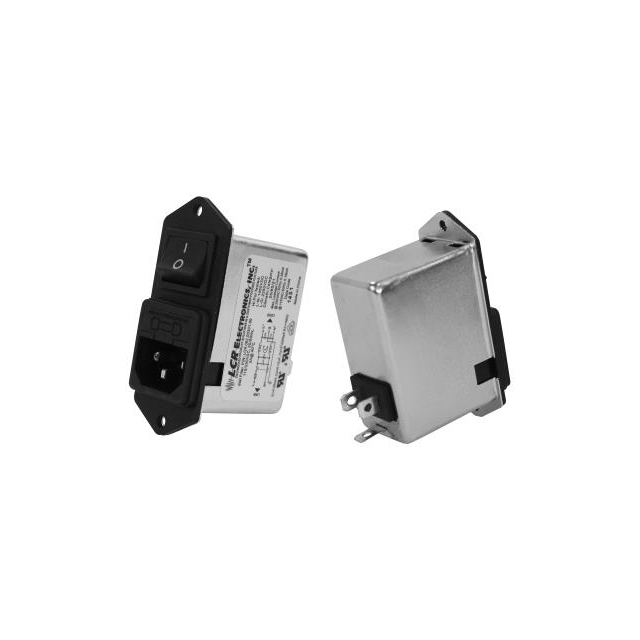

Astrodyne TDI part number 084M.01001.00 is an AC power entry module rated for 10 A and 250 VAC. It features a C14 connector, quick connect terminals, and panel mount installation. The unit includes standard EMI filtering, a fused configuration, and an illuminated switch.

Feature Summary

Integrated single-stage EMI filtering
Illuminated on-off switch mechanism
Dual fuse holder configuration

Applications

Medical equipment power input
Industrial control systems
Electronic instrumentation

Procurement Notes

Verify the specific suffix 'RSI' against the requested model. Datasheets and distributor listings for this base number often reference 084M.01001.00-RSI, which denotes the illuminated switch variant. Confirm terminal type and fuse specifications match the design requirements before ordering.

Selection Notes

Select this module for applications requiring combined switching, fusing, and filtering in a compact form factor. Ensure the 10 A current rating and 250 VAC voltage limit align with the system's electrical load. Verify that the quick connect termination style is compatible with the PCB or wire harness layout.

Part Context

This component belongs to the Astrodyne TDI 084 series of filtered power entry modules. These units are designed for general industrial and medical use, providing essential line conditioning and safety protection through integrated components within a standardized IEC interface housing.

Replacement Considerations

The suffix -RSI indicates the illuminated switch version. Verify if the non-illuminated variant or different fuse ratings are acceptable substitutes based on the original equipment manufacturer's specifications.
