085S.00100.00

Overview

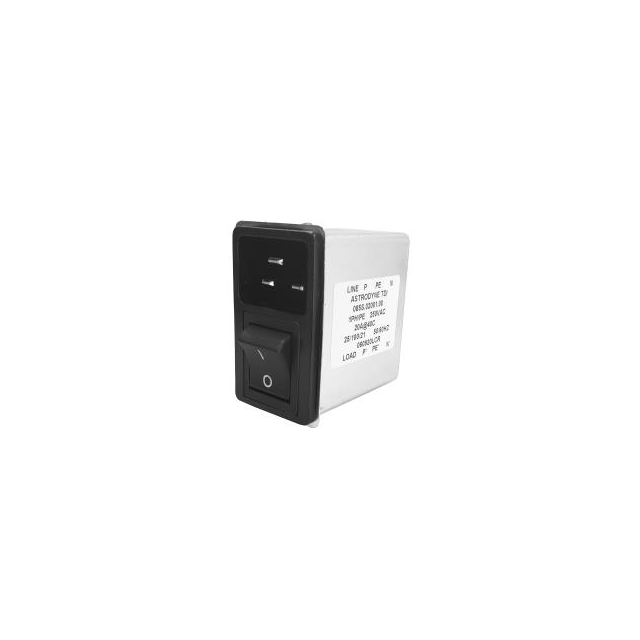

The Astrodyne TDI 085S.00100.00 is a single-phase AC power input module designed for filtered and switched applications. It features a 1 A current rating and supports voltages up to 250 VAC at 50/60 Hz frequencies. The unit utilizes a single-stage filter topology and incorporates an IEC-320 C-14 connector type with quick connect termination. Designed for snap-in mounting, the module measures 47 mm in height.

Feature Summary

• Integrates switching functionality with single-stage EMI filtering
• Utilizes IEC-320 C-14 inlet interface for standardized connection
• Supports snap-in installation method for secure mounting

Applications

• Medical equipment power entry
• General purpose industrial systems
• Secure data system power supplies

Procurement Notes

Verify that the specific order matches the 085S.00100.00 designation to ensure correct current and voltage ratings. Confirm compatibility with the required IEC-320 C-14 mating connectors and snap-in mounting infrastructure before finalizing procurement specifications.

Selection Notes

Select this module when a combined switch and single-stage filter solution is required for low-current AC applications. Ensure the design accommodates the 47 mm height dimension and utilizes quick connect termination methods compatible with the specified terminal type.

Part Context

This component belongs to the Astrodyne TDI 085S series of power entry modules. The series provides solutions for filtered and switched AC inputs, catering to requirements in medical and general-purpose electronic systems where compact power management is necessary.

Replacement Considerations

Consult official cross-reference charts for equivalent parts from other manufacturers. Verify electrical ratings and mechanical dimensions match before substituting.
