0898LP18A035001E

Overview

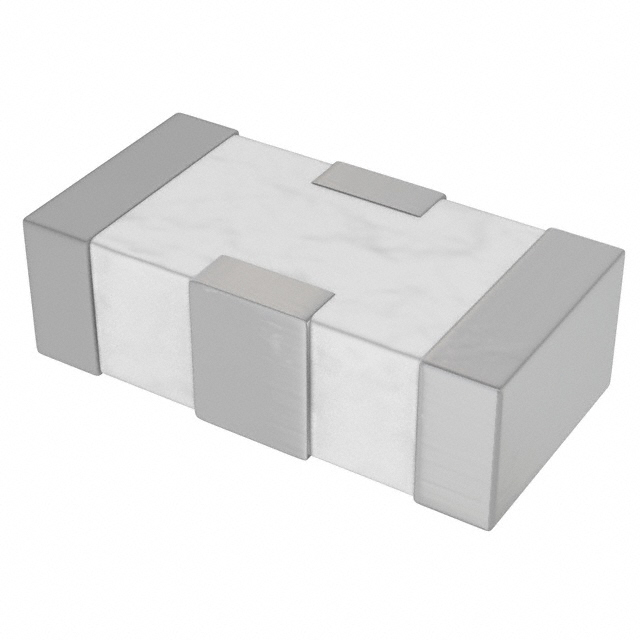

The 0898LP18A035001E is a low-pass RF filter manufactured by Johanson Technology Inc. It features a center frequency of 897.5MHz and a bandwidth of 35MHz. The component exhibits an insertion loss of 0.6dB and is housed in a 1206 (3216 Metric) surface-mount package.

Feature Summary

• Designed for radio frequency signal conditioning applications
• Provides low-pass filtering characteristics to manage signal integrity
• Utilizes surface-mount technology for automated PCB assembly

Applications

• RF signal path filtering
• Wireless communication systems
• Base station equipment

Procurement Notes

Verify the specific manufacturer part number against official Johanson Technology documentation to ensure accuracy. Confirm that the required packaging format aligns with production needs, as options may include tape and reel configurations. Cross-reference technical specifications directly with the datasheet to validate performance parameters for the intended design environment.

Selection Notes

Select this component based on its specific 897.5MHz center frequency and 35MHz bandwidth requirements. Ensure the 1206 footprint matches the printed circuit board layout constraints. Verify that the 0.6dB insertion loss meets the system's signal attenuation limits and that the surface-mount package is compatible with the assembly process.

Part Context

This component belongs to Johanson Technology's integrated passive device portfolio, specifically within their RF filter series. These devices are engineered to replace discrete solutions, offering compact form factors suitable for modern electronic designs requiring efficient signal management in constrained spaces.

Replacement Considerations

Consult official Johanson Technology substitution guides for verified alternatives. Do not assume functional equivalence with other low-pass filters without confirming matching electrical specifications and physical dimensions.
