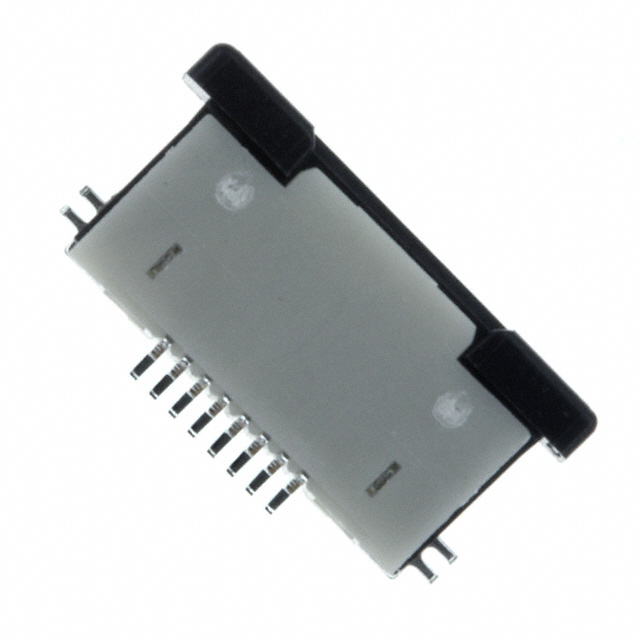

08FLZ-SM2-TB

Product Detailed Parameters

• Description：CONN FFC FPC TOP 8POS 0.5MM R/A
• Series：FLZ
• Mfr：JST Sales America Inc.
• Package：Tape & Reel (TR),Cut Tape (CT)
• Flat Flex Type：FFC, FPC
• Mounting Type：Surface Mount, Right Angle
• Connector/Contact Type：Contacts, Top
• Number of Positions：8
• Pitch：0.020" (0.50mm)
• Termination：Solder
• FFC, FCB Thickness：0.30mm
• Height Above Board：0.079" (2.00mm)
• Locking Feature：Slide Lock
• Cable End Type：Tapered
• Contact Material：Phosphor Bronze
• Contact Finish：Tin
• Housing Material：Polyamide (PA6T), Nylon 6T
• Actuator Material：Polyamide (PA6T), Nylon 6T
• Features：Solder Retention, Zero Insertion Force (ZIF)
• Voltage Rating：50V
• Operating Temperature：-25°C ~ 85°C
• Material Flammability Rating：UL94 V-0
