Product Detailed Parameters
- Description：LINE FILTER 520VAC CHASSIS MOUNT
- Series：TYT
- Mfr：Delta Electronics
- Package：Box
- Filter Type：Three Phase (Wye)
- Configuration：Single Stage
- Voltage - Rated DC：-
- Voltage - Rated AC：520V
- Current：-
- Frequency - Operating：50/60Hz
- Applications：General Purpose
- Approval Agency：UR
- Operating Temperature：-
- Mounting Type：Chassis Mount
- Termination Style：Terminal Block
- Inductance：2.4mH
- Voltage - Rated AC (Phase to Phase)：-
Download product information
Overview

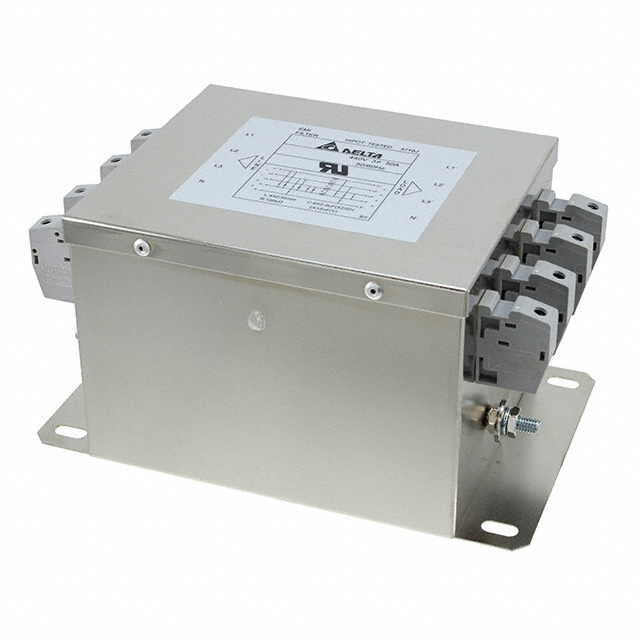

The Delta Electronics 08TYT8-1 is a three-phase, four-wire EMI/EMC power line filter designed for chassis mounting. It features a single-stage configuration with terminal block connections. The component is rated for a maximum voltage of 520 VAC and supports a continuous current of 8 A. This filter is intended to suppress electromagnetic interference in industrial power systems operating at standard frequencies.
Feature Summary
- Provides electromagnetic interference suppression for three-phase power lines
- Features a robust chassis mount design for secure installation
- Utilizes terminal block connections for straightforward wiring integration
Applications
- Industrial machinery power supply filtering
- Three-phase motor drive input stages
- Factory automation control panels
- Power distribution units requiring EMI reduction
Procurement Notes
Verify the specific datasheet version before procurement, as manufacturer specifications may evolve. Confirm that the terminal block type matches your existing wiring infrastructure. Ensure the chassis mounting dimensions align with your enclosure design. Check for any recent lifecycle status updates from Delta Electronics to confirm long-term availability.
Selection Notes
Select this model when a single-stage solution is sufficient for your noise attenuation requirements. Ensure the system voltage does not exceed the 520 VAC rating. Verify that the load current remains within the 8 A limit under all operating conditions. Consider thermal management capabilities if the filter will be installed in enclosed spaces with limited airflow.
Part Context
This component belongs to the TYT series of power line filters manufactured by Delta Electronics. The series is engineered for industrial applications requiring reliable noise suppression in three-phase environments. The 08TYT8-1 represents a specific current and voltage variant within this broader product family.
Replacement Considerations
No public confirmed substitute part numbers are available in the provided documentation. Users should consult Delta Electronics directly for cross-reference recommendations or equivalent products if this specific model becomes unavailable.
