091.02001.00

Overview

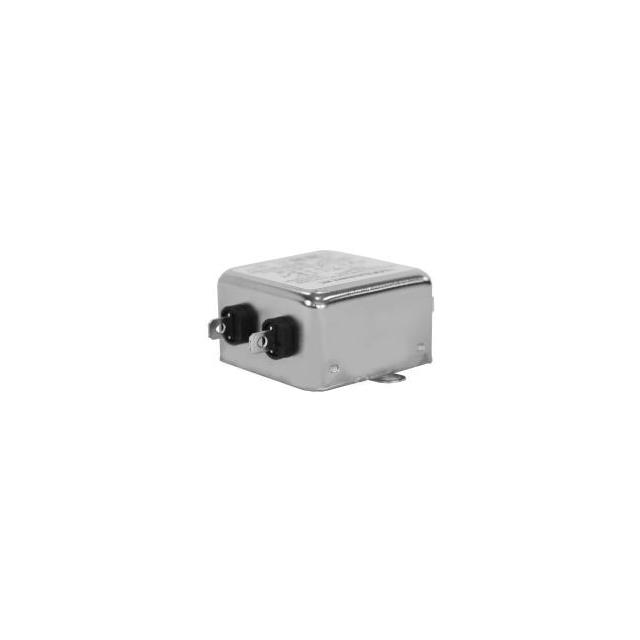

The Astrodyne TDI 091.02001.00 is a high-performance single-phase, single-stage EMI/EMC line filter designed for general industrial and commercial applications. It features a robust construction suitable for chassis or panel mounting with quick connect terminals. The unit operates at rated voltages of 120 to 250 VAC and supports a continuous current rating of 20 A at 50/60 Hz frequencies. Key electrical specifications include a maximum leakage current of 0.89 mA, ensuring safety compliance in sensitive environments. This component provides effective noise suppression while maintaining low insertion loss characteristics typical of the 091 series.

Feature Summary

• Single-stage EMI/EMC filtering architecture for efficient noise attenuation
• High current capacity supporting demanding power loads
• Low leakage current design for enhanced personnel and equipment safety
• Versatile terminal configuration for rapid integration

Applications

• Industrial machinery power distribution
• Commercial IT equipment power supplies
• General purpose electronic systems requiring EMC compliance
• Medical device power inputs (subject to specific certification verification)

Procurement Notes

Verify that the required voltage and current ratings align with your system's operational parameters before procurement. Confirm that the quick connect terminal type matches your wiring harness specifications. Ensure the physical dimensions fit within the designated enclosure space. Check for any specific regional certification requirements such as UL, CSA, or EN standards relevant to your deployment location. Validate that the leakage current limits comply with applicable safety regulations for your intended application environment.

Selection Notes

Select this model when a single-phase solution is sufficient for noise reduction needs. Consider the 20 A current rating to ensure adequate headroom for peak loads. Evaluate the single-stage design against more complex multi-stage options if higher attenuation is required. Assess the physical mounting constraints to ensure compatibility with chassis or panel installation methods. Compare leakage current specifications against strict safety standards if used in medical or sensitive environments.

Part Context

This component belongs to the Astrodyne TDI 091 series, which specializes in high-performance single-phase EMI filters. The series offers various current ratings and configurations to meet diverse EMC requirements. Astrodyne TDI provides comprehensive power line filtering solutions across multiple industries, including industrial, commercial, and medical sectors. The 091 series is known for its reliability and compact form factor, making it suitable for space-constrained applications requiring effective electromagnetic interference suppression.

Replacement Considerations

The 091.02001.00-M6 variant exists as a related part number within the same product family. Verify if the suffix indicates a specific mechanical or terminal modification rather than a functional change. Consult official documentation to confirm interchangeability regarding electrical performance and physical dimensions before substitution.
