0915LP15A026001E

Overview

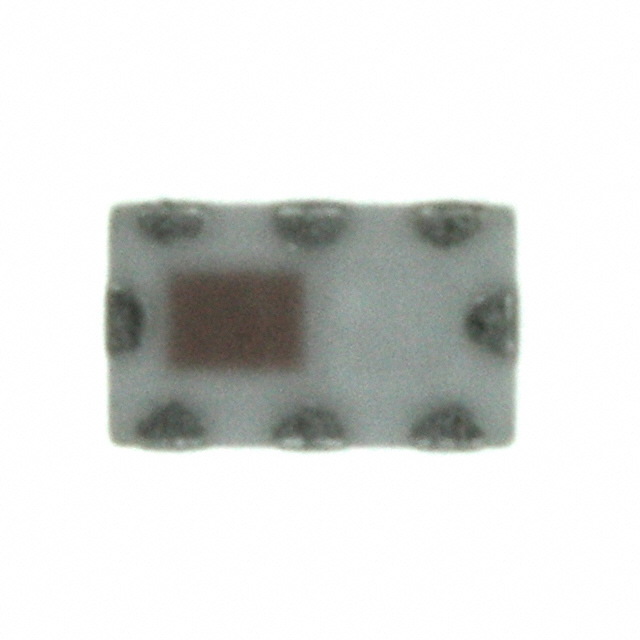

The 0915LP15A026001E is a surface-mount low-pass RF filter manufactured by Johanson Technology Inc. Designed for ISM band applications, it operates with a center frequency of 915 MHz and a bandwidth of 26 MHz. The component features an insertion loss of 0.65 dB and utilizes a compact 0805 (2012 metric) package measuring 2.00 mm x 1.25 mm x 0.95 mm maximum height. It is RoHS compliant and classified under ECCN EAR99.

Feature Summary

• Integrated low-pass filtering capability for RF signal conditioning
• Compact surface-mount design suitable for space-constrained PCB layouts
• Optimized performance within the 915 MHz ISM frequency range

Applications

• ISM band wireless communication modules
• RF front-end signal filtering
• Low-power IoT device transceivers

Procurement Notes

Verify component authenticity through authorized distributors or direct manufacturer channels. Confirm RoHS compliance status and check for lifecycle changes, as this part may be subject to obsolescence notices. Ensure packaging specifications match production requirements before finalizing orders.

Selection Notes

Select this component when a low-pass filter is required specifically for 915 MHz ISM applications. Consider the 0805 footprint constraints and 0.65 dB insertion loss tolerance. Evaluate thermal operating ranges against system environmental conditions to ensure reliability during operation.

Part Context

This component belongs to Johanson Technology's integrated passive components portfolio, focusing on miniaturized RF solutions. It serves as a specialized filter element within broader wireless transmission systems, replacing discrete LC networks to reduce board space and improve consistency in mass-produced electronic devices.

Replacement Considerations

The 0915LP15B0026001E is documented as a substitute part number for this obsolete component. Verify electrical compatibility and mechanical dimensions before implementation.
