092.00623.00

Overview

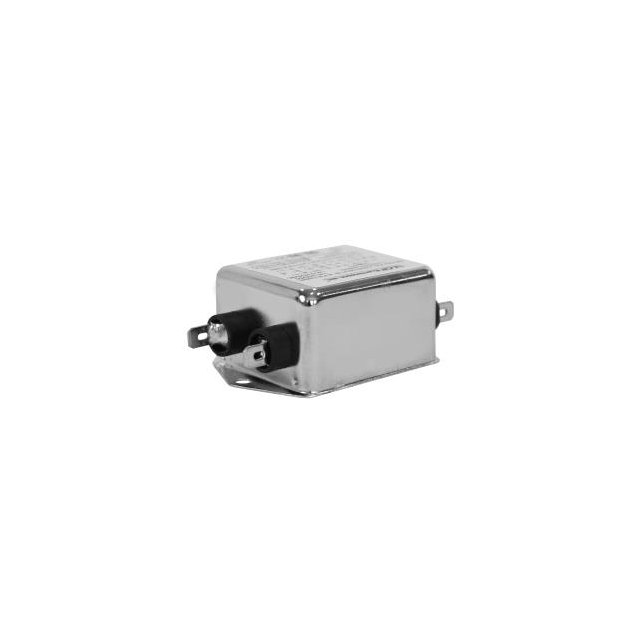

The Astrodyne TDI 092.00623.00 is a single-phase, two-stage EMI/EMC power line filter designed for chassis mounting. It features a rated AC voltage of 250V and a continuous current rating of 6A at operating frequencies of 50Hz and 60Hz. The unit utilizes quick connect tab terminations for circuit integration. Key electrical specifications include a maximum leakage current of 890µA (0.89mA). The component operates within a temperature range of -25°C to 85°C and holds UL, CE, cURus, and SEMKO certifications.

Feature Summary

• Two-stage filtering architecture for enhanced noise attenuation
• Chassis mount design with quick connect termination style
• Low leakage current specification suitable for sensitive equipment
• Compliance with major international safety standards including UL and CE

Applications

• Industrial machinery control systems
• Commercial IT equipment power inputs
• Medical device power conditioning
• Facility infrastructure power distribution

Procurement Notes

Verify the specific part number suffix and manufacturer documentation to confirm exact ratings and compliance status before integration. Ensure that the chassis mounting requirements and quick connect termination dimensions match the system design constraints. Cross-reference official datasheets for thermal derating curves and environmental limits to guarantee reliable operation under intended load conditions.

Selection Notes

Select this component when a single-phase, two-stage EMI filter is required for 250VAC applications drawing up to 6A. The low leakage current makes it suitable for medical or sensitive electronic environments where safety isolation is critical. Verify that the chassis mount form factor and quick connect terminals align with the available space and wiring methods in the target enclosure design.

Part Context

This component belongs to the Astrodyne TDI 092 Series, which offers a range of single-phase EMI filters. The series provides solutions for various current ratings and mounting styles, catering to diverse industrial, commercial, and medical power line protection needs. The 092.00623.00 represents a specific configuration within this broader product family focused on moderate current applications.

Replacement Considerations

Consult official Astrodyne TDI documentation for verified substitute part numbers. Do not assume interchangeability with other manufacturers' components without verifying electrical parameters, physical dimensions, and certification approvals.
