1-1609034-1

Overview

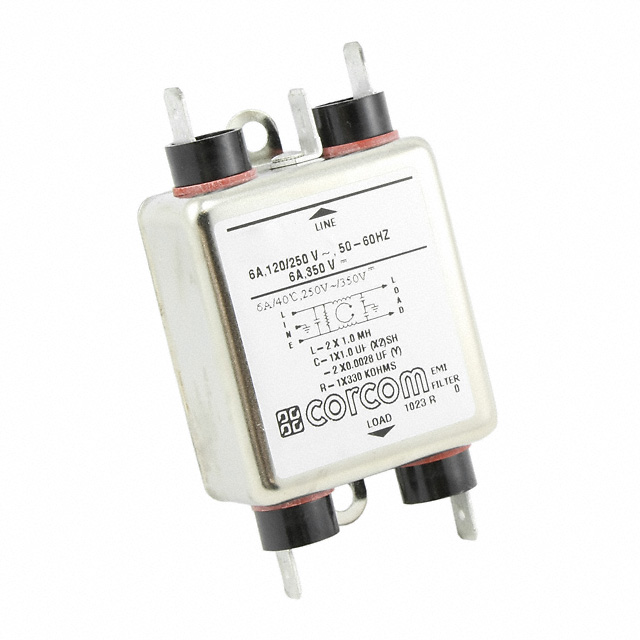

The TE Connectivity Corcom Filters model 1-1609034-1 is a single-phase EMC/EMI power line filter designed for AC or DC applications. It features a 6 A current rating and operates at 250 VAC and 250 VDC. The unit utilizes faston quick-connect terminals for input and output connections. With an inductance of 1 mH, it provides effective noise reduction. The filter supports 50 Hz and 60 Hz frequencies and includes a leakage current specification.

Feature Summary

• Single-stage design for general-purpose noise suppression
• Compact chassis mount construction
• Faston terminal connectivity

Applications

• General purpose electronic equipment
• Portable devices requiring VDE compliance
• AC and DC power line interference reduction

Procurement Notes

Verify the specific datasheet version to confirm exact leakage current values and terminal dimensions. Ensure the mounting style matches the chassis requirements. Confirm RoHS compliance status if required by the end application. Cross-reference the TE internal number 1-1609034-1 with ordering codes.

Selection Notes

Select this component when a single-phase filter with a 6 A rating is needed. Consider the 1 mH inductance for the required attenuation level. Verify that the faston terminal size fits the circuit board or wiring harness. Check voltage ratings against the system's maximum operating voltage.

Part Context

This part belongs to the Corcom SB series of single-phase filters from TE Connectivity. It is designed to meet stringent electromagnetic compatibility standards. The series offers various current ratings and terminal configurations for diverse industrial and commercial applications.

Replacement Considerations

Check for direct substitutes within the Corcom SB series. Verify equivalent current and voltage ratings. Ensure terminal type compatibility. Consult manufacturer cross-reference lists for approved alternatives.
