1-1609034-2

Overview

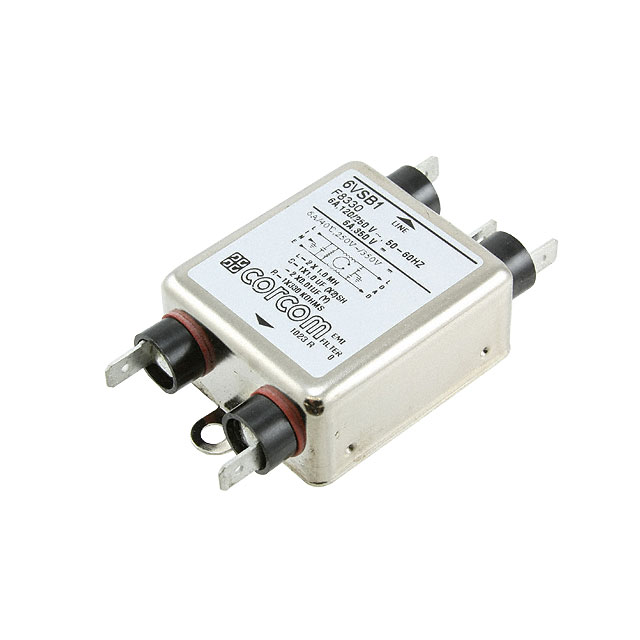

The TE Connectivity Corcom Filters 1-1609034-2 is a single-phase EMC/EMI line filter belonging to the SB Series. It features a chassis mount configuration with quick connect termination style. The component is rated for 6 A current and operates at voltage ratings of 250 VAC and 250 VDC. Designed for 50 Hz and 60 Hz frequencies, it provides single-stage filtering suitable for general purpose applications.

Feature Summary

• Provides single-stage EMI/RFI suppression for AC power lines
• Supports both AC and DC voltage environments up to specified ratings
• Utilizes quick connect terminals for simplified circuit integration

Applications

• General purpose electronic equipment requiring EMI suppression
• Chassis-mounted power entry modules
• Industrial control systems

Procurement Notes

Verify the specific series designation (SB) and electrical ratings against the official datasheet before procurement. Confirm that the quick connect terminal type matches the mating connector requirements in the target assembly. Ensure the chassis mounting dimensions align with the enclosure design specifications.

Selection Notes

Select this component when a single-stage filter is sufficient for the required attenuation levels. Consider the 6 A current rating and 250 VAC/DC voltage limits to ensure safe operation within the system's electrical parameters. Verify compatibility with the available chassis space for the physical footprint.

Part Context

This part belongs to the TE Connectivity Corcom SB Series of single-phase filters. These components are designed for robust performance in industrial and commercial environments. The SB Series offers various current ratings and configurations to meet diverse EMC compliance needs for power line conditioning.

Replacement Considerations

Cross-reference with other single-stage filters from the same manufacturer or compatible series if availability is an issue. Ensure any substitute maintains the same current, voltage, and termination specifications.
