1-1609034-3

Overview

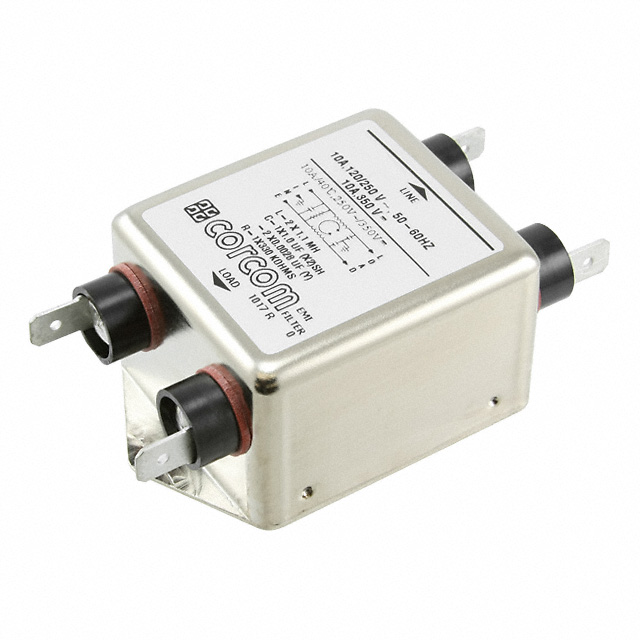

The TE Connectivity Corcom Filters 1-1609034-3 is a single-phase EMC/EMI line filter designed to reduce electrical noise and interference on AC or DC power lines. It features a current rating of 10 A, voltage ratings of 250 VAC and 250 VDC, and operates at frequencies of 50 Hz and 60 Hz. The unit utilizes a single-stage configuration with quick connect termination style and chassis mount installation.

Feature Summary

• Reduces electrical noise and interference on power lines
• Single-stage filtering configuration for efficient EMI/RFI suppression
• Compatible with both AC and DC power line applications

Applications

• General electronic equipment requiring EMI/RFI suppression
• Power supply input stages
• Industrial control systems

Procurement Notes

Verify the exact part number against official TE Connectivity documentation before procurement. Confirm that the single-stage configuration and quick connect terminals match your system requirements. Ensure the 10 A current rating and 250 VAC/VDC voltage limits are suitable for your specific application environment.

Selection Notes

Select this component when a single-stage filter is sufficient for your noise reduction needs. The 10 A rating supports moderate power loads. Verify that chassis mounting and quick connect terminations align with your assembly constraints. Consider higher-stage filters if greater attenuation is required.

Part Context

This component belongs to the TE Connectivity Corcom Filters series, which specializes in power line filters for various industrial and commercial applications. The 1-1609034-3 model represents a standard single-phase solution within their broader portfolio of electromagnetic interference suppression products.

Replacement Considerations

Consult official TE Connectivity substitution guides for verified alternatives. Ensure any replacement maintains the same single-stage configuration, 10 A current rating, and quick connect termination style to guarantee compatibility.
