1-1609034-4

Overview

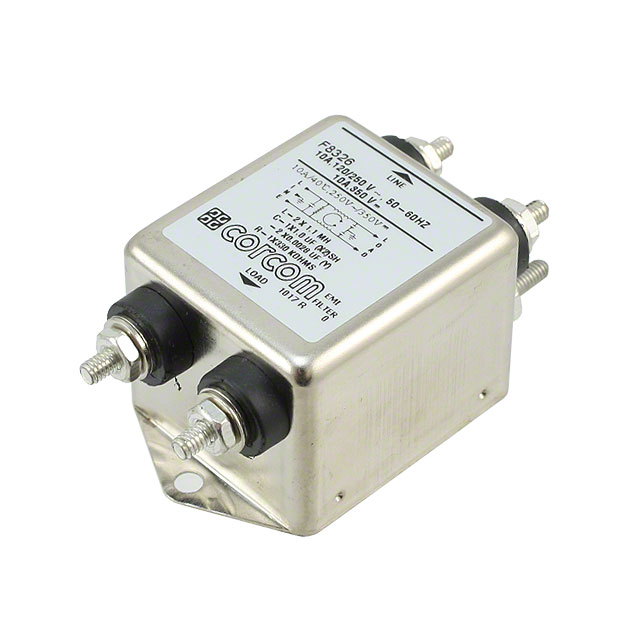

The TE Connectivity Corcom Filters 1-1609034-4 is a single-phase EMC/EMI power line filter designed for chassis mounting. It supports a rated current of 10 A and operates at voltage ratings of 250 VAC and 250 VDC with a frequency range of 50 Hz to 60 Hz. The component utilizes a single-stage configuration and features threaded post terminals (8-32) for secure electrical connections.

Feature Summary

• Provides single-stage EMI/RFI noise suppression for AC and DC power lines
• Features robust chassis mount construction with threaded post termination
• Supports dual voltage ratings for versatile AC and DC applications

Applications

• Industrial equipment power input stages
• Medical device power supplies
• General purpose electronic enclosures requiring EMI filtering

Procurement Notes

Verify the specific terminal configuration, noting the 8-32 threaded post style differs from standard faston types found in other Corcom series. Confirm that the single-stage attenuation meets the system's electromagnetic compatibility requirements before finalizing procurement.

Selection Notes

Select this model when a single-stage filter solution is sufficient for the application's noise profile. Ensure the mechanical design accommodates the chassis mount footprint and provides clearance for the 8-32 threaded post terminals during assembly.

Part Context

This component belongs to the TE Connectivity Corcom Filters lineup, specializing in power line conditioning. It serves as a specialized variant within the broader portfolio, distinguished by its specific threaded post interface and single-stage architecture compared to multi-stage or faston-terminal alternatives.

Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided documentation.
