1-1609034-5

Overview

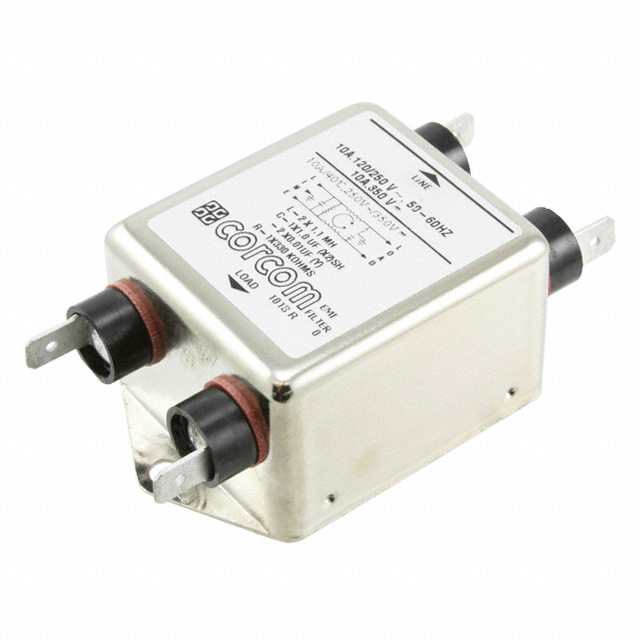

The TE Connectivity Corcom Filters 1-1609034-5 is a single-phase EMC/EMI power line filter designed for chassis mounting. It supports an AC voltage rating of 250 VAC and a DC voltage rating of 250 VDC, with a continuous current rating of 10 A. The component operates at frequencies of 50 Hz and 60 Hz and utilizes a single-stage configuration with quick connect termination style.

Feature Summary

• Provides single-stage EMI/RFI noise suppression for single-phase power lines
• Features quick connect termination style for circuit board integration
• Designed for secure chassis mounting installation

Applications

• Industrial equipment power conditioning
• Commercial electronic device power supplies
• General purpose EMC compliance filtering

Procurement Notes

Verify the specific datasheet version (e.g., 1-1609034-5(1).pdf or 1-1609034-5(2).pdf) to ensure compatibility with your design requirements. Confirm that the chassis mount footprint and quick connect terminal dimensions match your assembly specifications before finalizing procurement.

Selection Notes

Select this component when a 10 A single-phase filter is required for chassis-mounted applications. Ensure the system operates within the 250 VAC/VDC range and 50/60 Hz frequency spectrum. Verify that the single-stage attenuation meets the specific EMI/RFI suppression needs of the target application.

Part Context

This part belongs to the TE Connectivity Corcom Filters series, which specializes in power line filters for commercial and industrial use. The 1-1609034-5 variant specifically addresses high-current single-phase filtering requirements using a robust chassis-mount form factor suitable for heavy-duty environments.

Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided documentation. Consult official TE Connectivity resources for equivalent alternatives if this specific part number is unavailable.
