1-1609034-6

Overview

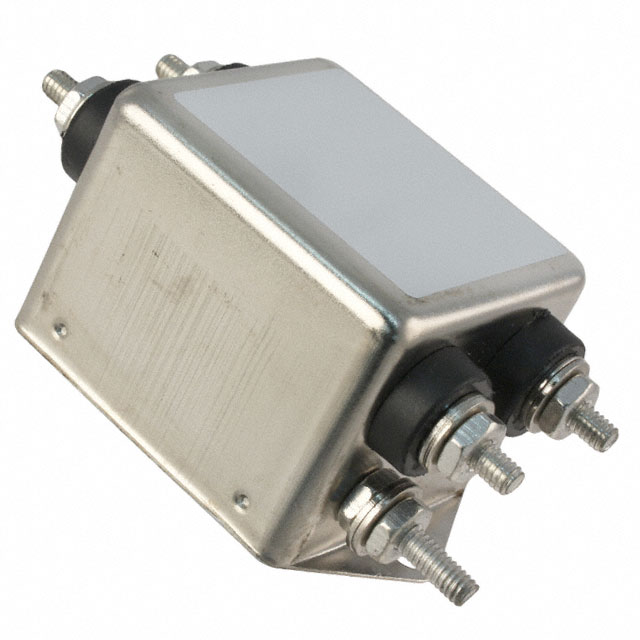

The TE Connectivity Corcom Filters 1-1609034-6 is a single-phase EMC/EMI power line filter designed for chassis mounting. It features a current rating of 10 A and supports voltage ratings up to 250 VAC. The unit provides an inductance of 1.1 mH and utilizes a threaded post (8-32) termination style. Operating at frequencies of 50 Hz or 60 Hz, this component serves general-purpose applications requiring reliable noise suppression.

Feature Summary

• Single-stage EMI/RFI filtering configuration
• Chassis mount installation with threaded post termination
• General-purpose noise suppression design

Applications

• General purpose electronic equipment
• Industrial control systems
• Power supply input stages

Procurement Notes

Verify the specific datasheet version and physical dimensions against your enclosure requirements before ordering. Confirm that the 8-32 threaded post termination matches your panel mounting hardware. Ensure the 10 A current rating and 250 VAC voltage rating align with your system's electrical specifications to guarantee safe operation.

Selection Notes

Select this model when a single-stage filter solution is sufficient for your electromagnetic interference reduction needs. The threaded post termination offers a secure mechanical connection suitable for chassis mounting applications. Consider the 1.1 mH inductance value to ensure it meets your circuit's impedance requirements without affecting normal operation.

Part Context

This component belongs to the TE Connectivity Corcom Filters series, which specializes in power line filtration solutions. The brand is recognized for providing robust EMI/RFI filters for various industrial and commercial applications. This specific part number represents a standard offering within their portfolio of single-phase filtering products.

Replacement Considerations

Consult official manufacturer documentation for verified substitute part numbers. Cross-referencing should be performed based on identical electrical parameters and mechanical footprint to ensure compatibility.
