1-1609034-7

Overview

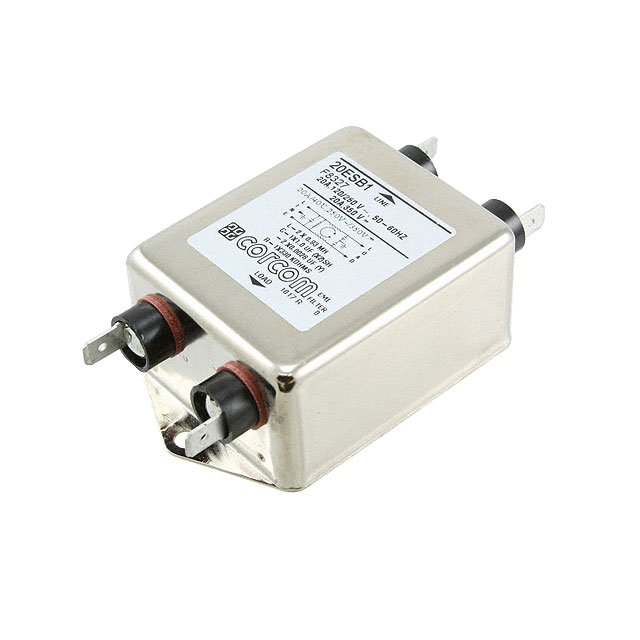

The TE Connectivity Corcom Filters 1-1609034-7 is a single-phase EMC/EMI power line filter designed for chassis mounting. It supports an operating voltage of 250 VAC and 250 VDC with a maximum current rating of 20 A. The component operates at frequencies of 50 Hz and 60 Hz and utilizes quick connect terminals for electrical connection. Certified by UL, CSA, and VDE, it is suitable for industrial applications requiring reliable noise suppression.

Feature Summary

• Provides effective electromagnetic interference and radio frequency interference suppression
• Features low leakage current characteristics for enhanced safety
• Designed for robust chassis mounting installation

Applications

• Industrial machinery power supplies
• Medical equipment power inputs
• Information technology hardware filtering

Procurement Notes

Verify the specific ordering suffix to ensure correct terminal configuration and certification requirements. Confirm that the application environment matches the rated voltage and current specifications. Check for any recent product change notices regarding manufacturing sources or materials. Ensure compatibility with existing chassis mounting holes and terminal spacing before procurement.

Selection Notes

Select this model when a single-phase filter with a 20 A rating is required. Consider the SB series characteristics for high-performance low-leakage needs. Evaluate the physical dimensions against available chassis space. Compare insulation resistance and attenuation levels against specific regulatory standards for the target market.

Part Context

This component belongs to the TE Connectivity Corcom SB series of power line filters. The series is engineered for demanding environments where compact size and high efficiency are critical. It complements other single-phase solutions in the Corcom portfolio designed for general industrial and commercial use cases.

Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided documentation. Verify pinout and mounting hole patterns if considering alternative manufacturers.
