1-1609034-8

Overview

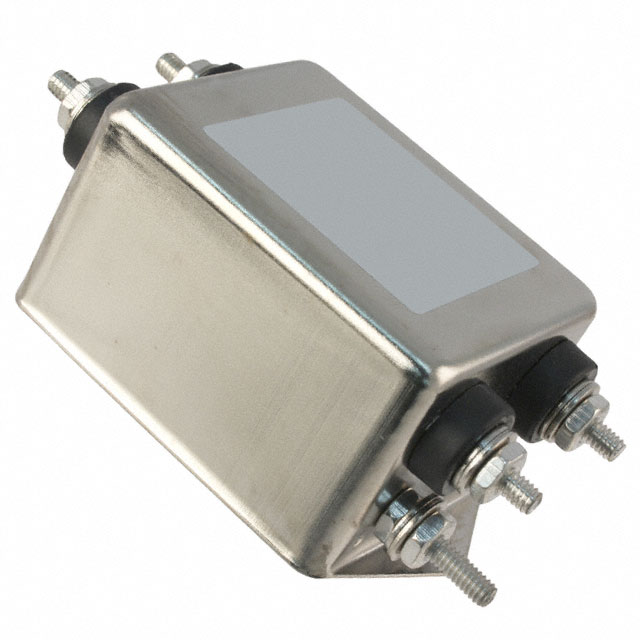

The TE Connectivity Corcom Filters 1-1609034-8 is a single-phase EMI/RFI power line filter designed for chassis mounting. It supports a rated current of 20 amps and operates at voltage ratings of 250 VAC and 250 VDC. The component functions within a frequency range of 50 Hz to 60 Hz and maintains an operating temperature between -10°C and 40°C. It complies with the ELV Directive and RoHS standards, ensuring regulatory adherence for electronic equipment applications requiring effective noise suppression.

Feature Summary

• Provides single-phase electromagnetic interference (EMI) and radio frequency interference (RFI) filtering
• Designed for secure chassis mounting installation
• Complies with ELV Directive and RoHS environmental standards

Applications

• Industrial control systems
• Medical equipment
• Telecommunications infrastructure

Procurement Notes

Verify the specific datasheet version for the 1-1609034-8 part number to confirm exact terminal configurations and mechanical dimensions. Ensure that the 20A current rating and 250VAC/VDC voltage limits align with the target circuit requirements before integration. Cross-reference certification marks such as UL or CSA if required by regional safety regulations for the final assembly.

Selection Notes

Select this component when high-current single-phase filtering is required in space-constrained chassis environments. The 20A rating distinguishes it from lower-capacity series models. Confirm compatibility with existing mounting hardware and verify that the specified operating temperature range meets the environmental conditions of the intended deployment site without additional cooling measures.

Part Context

This component belongs to the TE Connectivity Corcom Filters product line, which specializes in power line filters for industrial and commercial applications. The 1-1609034-8 designation identifies a specific variant within the broader portfolio of EMI suppression solutions offered by the manufacturer, focusing on robust performance for demanding electrical environments.

Replacement Considerations

Consult official TE Connectivity substitution guides for verified equivalents. Generic cross-references may not match the specific 20A current handling or certified compliance levels required for this application.
