1-1609034-9

Overview

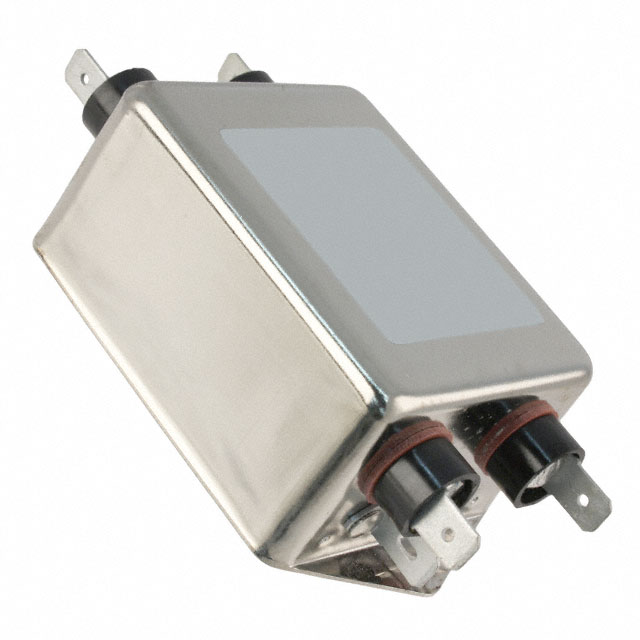

The TE Connectivity Corcom SB series filter, part number 1-1609034-9, is a single-phase EMC/RFI line filter designed for power line conditioning. It features a 20 A current rating and operates at voltage ratings of 250 VAC and 250 VDC. The unit utilizes a chassis mount installation style with fast-on (quick connect) termination type. Designed for 50 Hz and 60 Hz frequencies, it provides enhanced performance compared to the existing B series RFI line filters. The component includes a capacitance value of 1.005 μF and has a maximum leakage current of 1.25 mA.

Feature Summary

• Enhanced performance version of the existing B series RFI line filters
• Compact design suitable for space-constrained applications
• Designed and tested for susceptibility and emissions applications
• Receives approval from major safety agencies including UL, CSA, and VDE

Applications

• General purpose power line filtering
• Susceptibility applications
• Emissions applications

Procurement Notes

Verify the specific part number against official TE Connectivity documentation to ensure compatibility with your system requirements. Confirm that the 20 A current rating and 250 VAC/VDC voltage ratings align with your operational parameters. Ensure that the chassis mount style and fast-on termination type match your assembly specifications. Check for any required safety agency approvals such as UL, CSA, or VDE depending on your regional compliance needs.

Selection Notes

Select this component when enhanced RFI filtering performance is required in a compact form factor. Consider the 20 A current capacity and single-phase configuration for appropriate power line applications. Verify that the chassis mount style and quick connect terminations fit your mechanical and electrical interface requirements. Ensure the operating temperature range of -10°C to 40°C meets your environmental conditions.

Part Context

This component belongs to the TE Connectivity Corcom SB series, which represents an enhanced performance version of the previously available B series RFI line filters. The SB series is characterized by its compact design and suitability for various general-purpose filtering tasks. It is engineered to meet stringent emission and susceptibility standards while maintaining a small footprint.

Replacement Considerations

Consult official TE Connectivity documentation for confirmed substitute part numbers. Do not assume cross-compatibility with other series without verifying technical specifications and safety approvals.
